Home >  Products  > Crusher  >  AF Series Hydraulic Cone Crusher(Sino-Japanese Cooperation)

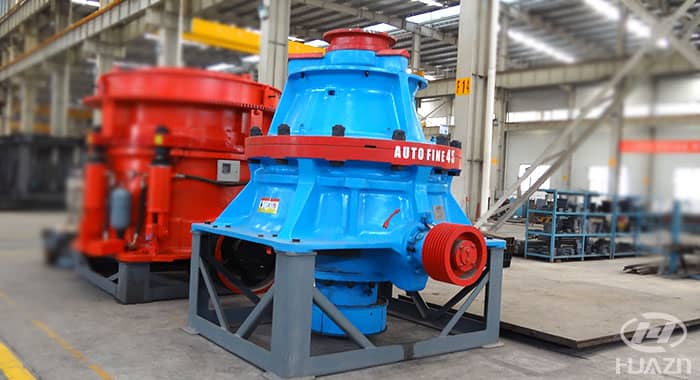

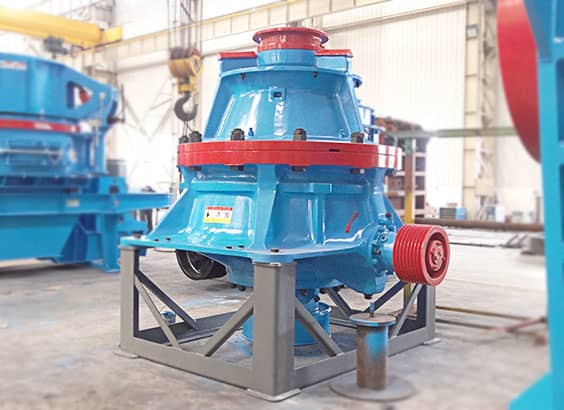

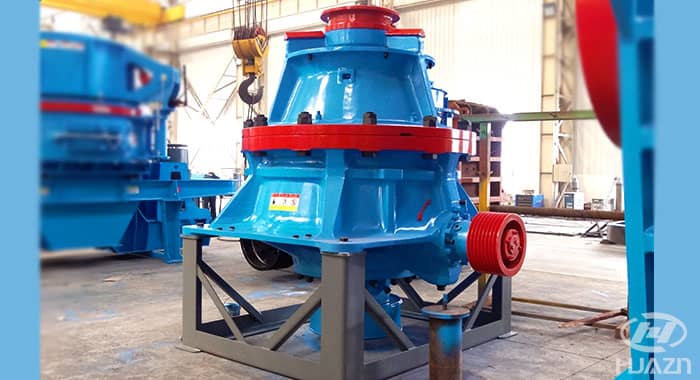

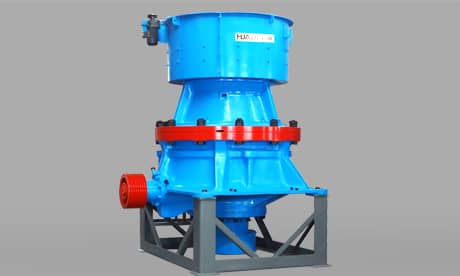

AF series cone crusher is a kind of high-efficient fine cone crusher that manufactured by our compan. It applied the advanced laminated crushing technique at present and can substitute for impact crusher to obtain the even, fine grain without influence of material properties. So it achieves the epochal crushing capacity. The optimal eccentric distance, discharge opening and automatic, steady feeding make the material to be laminating crushed in the special designed crushing chamber. The machine has features such as big throughput, high product yield, good product shape, easy operation and steadily running etc. Furthermore, it is very quick and convenient to change the wearable parts, and it is very simple to adjust the discharging outlet. The machine has two kinds of systems for users to choose: Manual operation system and PLC automatic control system.

1. Special crushing cavity is designed adopting laminating crushing theory. In the effective crushing segment can form a high density layer which guarantees fine particle size, good shape and handsome output.

2. Automatic operating system to ensure a smooth and high-efficient running of machine.

3. To eject the foreign-body by itself.

4. The equal feeding device is able to avoid the deviation of lining and at the same time detect material level by which the feeding materials spread uniformly along the circle.



Specification
AF36
AF45
AF60
Feed size
(mm)
Mesh size(mm)
Throughput(t/h)
Mesh size(mm)
Throughput(t/h)
Mesh size(mm)
Throughput(t/h)
max
min
5 13 20 30
5 13 20 30 40
13 20 30 40
100
0
35 70 95 130
150
60 105 140 195 250
260
155 195 275 355
555
20
35 65 85 115
145
60 100 130 170 215
220
150 195 255 320
485
80
0
40 75 105 145
150
60 110 155 220 260
265
160 205 300 405
575
20
35 70 90 120
130
60 105 140 185 210
215
155 205 275 350
475
60
0
45 85 125
150
65 125 185 260
265


13
40 75 105
125
60 115 155 215
225


20
40 70 100
125
60 110 150 205



Power(kw)
132
220
315

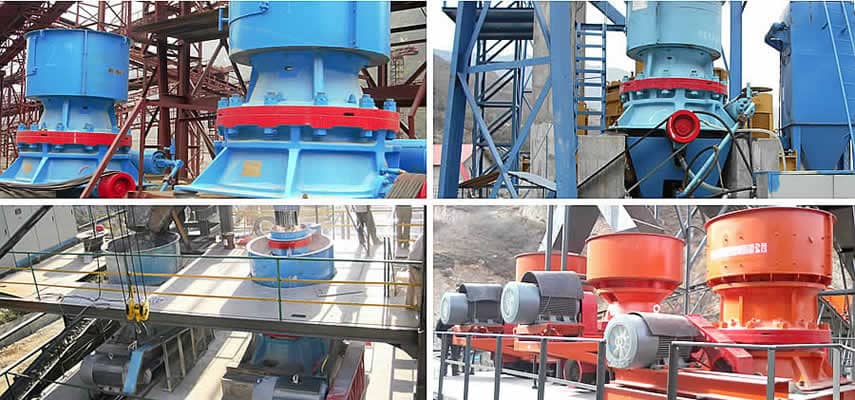

AF Series Hydraulic Cone Crusher Application

SPARE PART CENTER
  • Driving Shaft Bushing

  • Eccentric

  • Mantle

  • Head Center Bushing

  • Socket

  • Feed Plate

  • Concave Ring

  • Main Shaft Bushing

Multi-cylinder hydraulic cone crusher spares
ASSEMBLING AND TRANSPORTATION

af assembling
