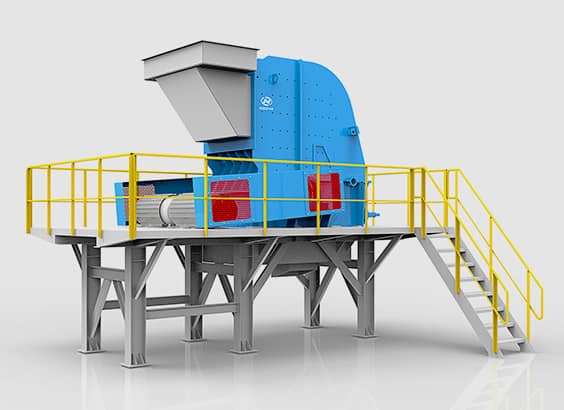

Home >  Products  > M Series Crushing plant  >  MF Series Impact Crusher Modular Crushing Plant

The modular crushing and screening plant is consisting of one or several crushing or screening units based on the customers’ needs of the projects.

1. Impact crusher modular crushing plant is mainly used for crushing minerals and rocks which are below medium hardness.

2. The structure of impact crusher modular crushing plant is simple and beautiful. All independent workpiece can be split, which is convenient to assembling, disassembling and transporting.

3. The standardized feeding hopper and discharging hopper (self-abrasion and resistant) can be configured according to the customer's needs.

4. The design of ladders, handrails and surrounding walkways is easy to inspect and maintain for any parts of the impact crusher.





Model MF-1110 MF-1310 MF-1315 MF-1320 MF-1520
Max. Feed Size (mm) 400 500 600 600 800
Capacity (t/h) 60-100 100-180 200-280 280-350 420-500
Type PFQ1110 PFQ1310 PFQ1315 PFQ1320 PFQ1520
Power (kw) 110 160 250 2*200 2*250
Main steel structures Support base, Maintenance platform, Ladder and railings, Feed chute and discharge chute (optional).
ASSEMBLING AND TRANSPORTATION

jaw crusher assembling and transportation
