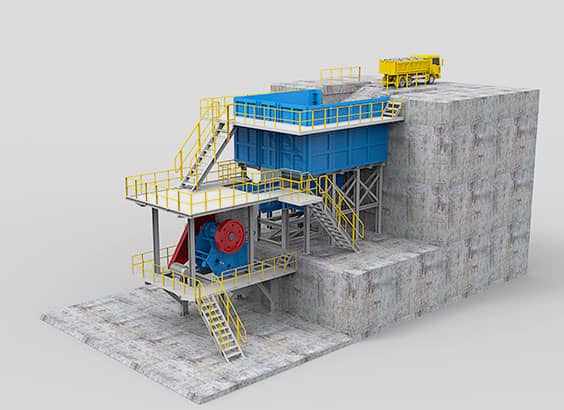

The modular crushing and screening plant is consisting of one or several crushing or screening units based on the customers’needs of the projects.

1. The jaw crusher modular crushing plant is mainly used for mineral and rock primary crushing processing.

2. The different specifications of the feeders, jaw crushers, belt conveyors and module structures are designed according to different production capacity.

3. The matched feed bin is designed according to different feeding types, which is easy to be fed by excavator or dump truck.

4. According to customers’ needs, configuring with the crushing hammer is used for the oversize materials processing to improve the efficiency of jaw crusher.

5. Configuration with the one or two-level grizzly vibrating feeder is under the raw materials bin, which can do the pre-screening and cleaning work for the raw material.

6. The skid structure platform of equipment base with walkways, handrails and ladders shall be designed, which is more convenient to observing, inspection and maintenance.





Model MJ-150 MJ-250 MJ300 MJ-450 MJ-650 MJ-850
Feed Size(mm) 530 720 800 800 910 1020
Capacity(t/h) 120-150 150-250 250-300 300-450 450-650 650-850
Total Power (kw) 11+90 18.5+110 30+132 37+160 37+200 45+250
Main Equipment Vibrating Feeder ZSW380*95 ZSW490*110 ZSW600*130 ZSW600*150 ZSW600*180 ZSW600*180
Jaw Crusher JC90/ ASD-3625 JC110/ ASJ-E4230 C1210 JC125/ ASJ-E4836 JC140/ ASJ-E5442 JC160/ ASJ-E6048
Main Belt Conveyor (optional) B800 B1000 B1000 B1200 B1200 B1400
Side Belt Conveyor (optional) B500 B500 B500 B650 B650 B650
Main steel structures Feed bin unit, Support base, Maintenance platform, Ladder and railings, Feed chute and discharge chute.
ASSEMBLING AND TRANSPORTATION

jaw crusher assembling and transportation
