Home >  Products  > M Series Crushing plant  >  MS Series of Screening Plant

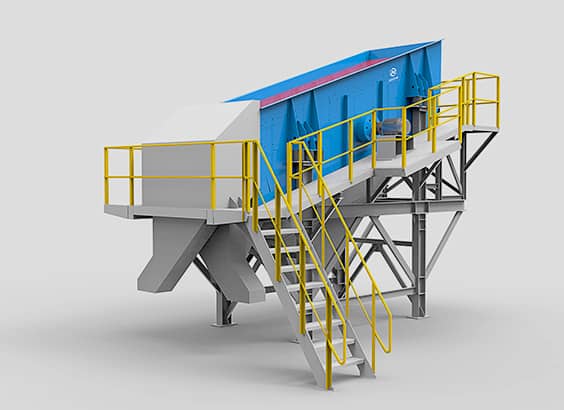

The modular crushing and screening plant is consisting of one or several crushing or screening units based on the customers' needs of the projects.

1. It is mainly used for screening and classifying of the materials in the primary and secondary crushing stage.

2. Smart structure and good locking: all independent workpiece can be disassembled, which is convenient for assembly and transportation.

3. The slide type discharging chute is designed in front of the Vibrating Screen, which is easy for the maintenance.

4. Designed discharging chute in the under of Vibrating Screen, which is easy for assembling, disassembling and transportation.

5. The ladder, handrail and surrounding type of walkways will be designed and facilitated for the screening plant, which is convenient to do the inspection and maintenance for any part of the Vibrating Screen.



Model MS-2160 MS-2460 MS-2475 MS-2773 MS-3060 MS-3073 MS-3673
Max.feeding size(mm) 200 200 200 200 200 200 200
Capacity(t/h) 115-820 120-880 150-950 150-1100 150-900 150-1200 220-1500
Layers 2/3/4 1/2/3 2/3 2/3 2/3 2/3 2/3
Power(kw) 30/37/45 30/37/45 45/55 55 45/55 55/2*37 2*37/2*45
The standard configuration Model YKR2160 YKR2460 YKR2475 YKR2773 YKR3060 YKR3073 YKR3673
Discharging chute
Fine discharging chute
Platform
Supporting module
Ladder and handrail
ASSEMBLING AND TRANSPORTATION

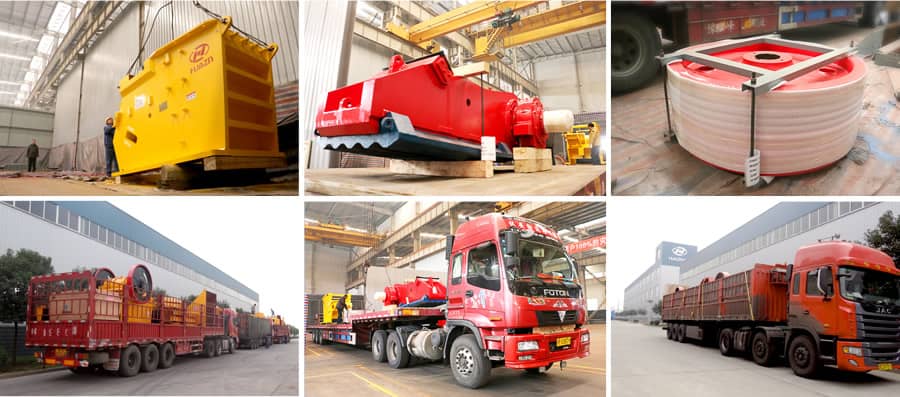

jaw crusher assembling and transportation
