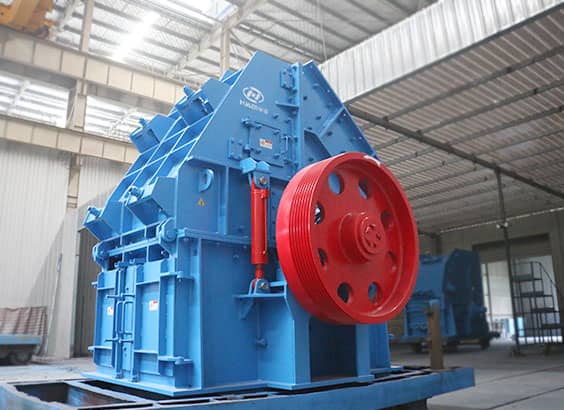

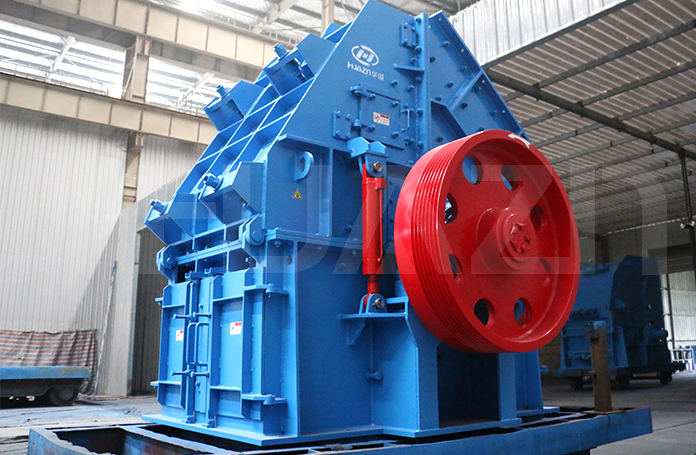

Home >  Products  > Crusher  >  PCD Series Single-stage Hammer Crusher

This series product can crush medium-hardness material with maximum feed size 600-1900mm, compression strength less than 200Mpa into finished product with size 40-25mm at once. It can be widely used in cement, chemistry, building material, and the brittle material with low water and mud content such as limestone, dolomite. This series product has the features of smart structure, big crushing ration, large capacity, low energy consumption, covering small area and so on. It may combine the two sections and three sections into single-section to finish crushing, which simplifies crushing process and reduces equipment investment.

1. Large feed size,high crushing ratio, uniform granularity of product.

2. High rate of finished products, granulate finished product occupies up to 85%, totally meet the requirements for use.

3. Adjustible distence of gird sections,controllable granuality and perfect particle shape.

4. To finish the primary and secondary crushing in one step with simplized technical process and lower operation costs.

5. Adoption of hammer, gird sections and impact plate all with high wearing resistance makes their service life longer.

6. Low matched power and low consumption in energy and wearing parts.

Specification
Rotator Size
(mm)
Max. Feed Size(mm)
Discharge Size
(mm)
Capacity
(t/h)
Power
(kw)
Weight
(kg)
PCD1412
φ1400×1200
600
≤25
80-130
160
20000
PCD1609
φ1680×918
600
≤25
50-70
110
23000
PCD1612
φ1680×1250
850
≤25
100-140
210
29000
PCD1615
φ1680×1580
1000
≤25
180-220
280
38000
PCD1809
φ1800×870
900
≤25
50-80
132
26800
PCD1812
φ1800×1200
1200
≤25
100-150
210
31900
PCD1816
φ1800×1580
1200
≤25
150-190
315
41000
PCD2014
φ1990×1400
1200
≤25
150-200
315
44000
PCD2017
φ1990×1700
1200
≤25
200-250
355
51000
PCD2519
φ2530×1860
1500
≤25
250-450
600
90000
PCD2522
φ2530×2180
1500
≤25
400-550
750
96800
PCD2523
φ2530×2345
1500
≤25
500-600
900
106000
PCD2724
φ2750×2450
1800
≤25
600-800
1100
127000
PCD3028
φ3000×2810
1900
≤25
800-1000
1500
210000

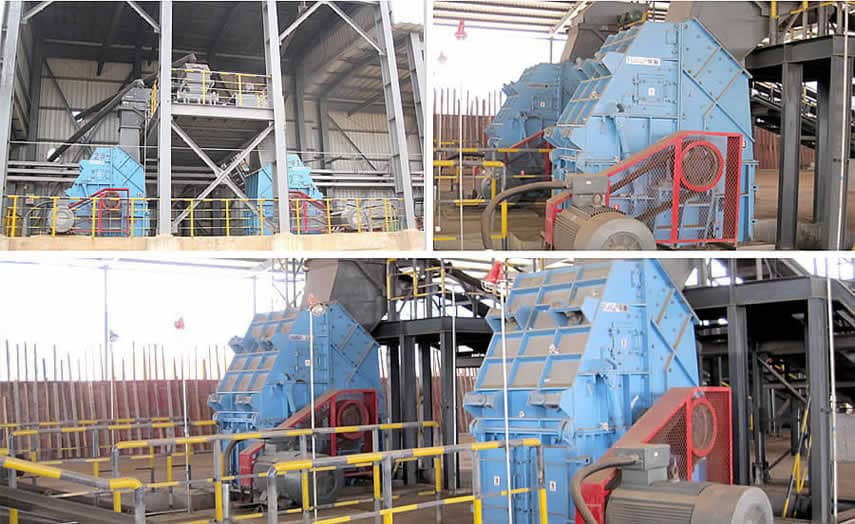

PCD Series Single-stage Hammer Crusher Application

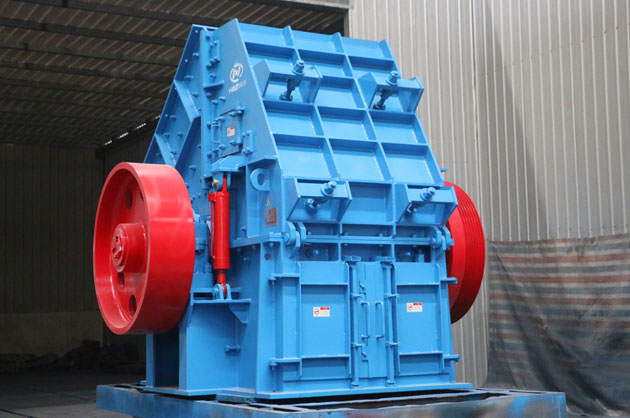

ASSEMBLING AND TRANSPORTATION

pcd assembling
