Home >  Products  > Crusher  >  PEY Series Hydraulic Protection Jaw Crusher

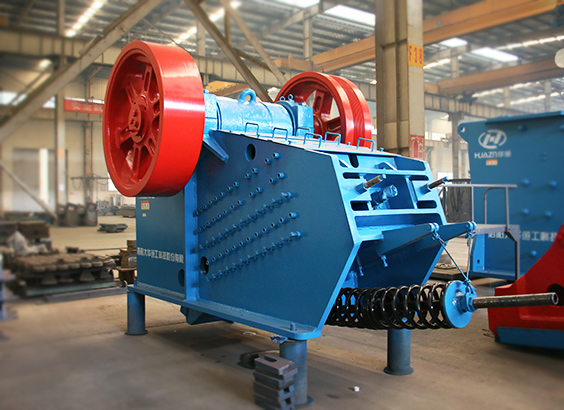

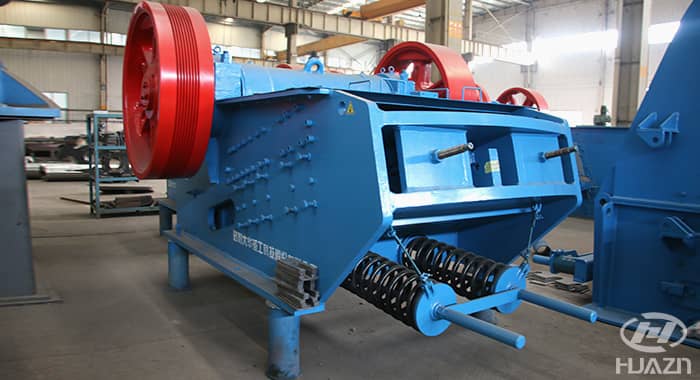

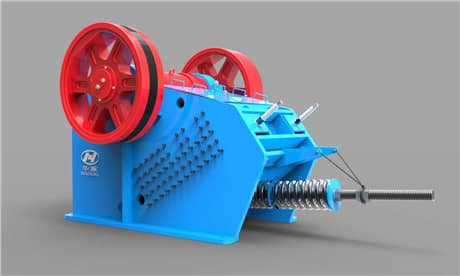

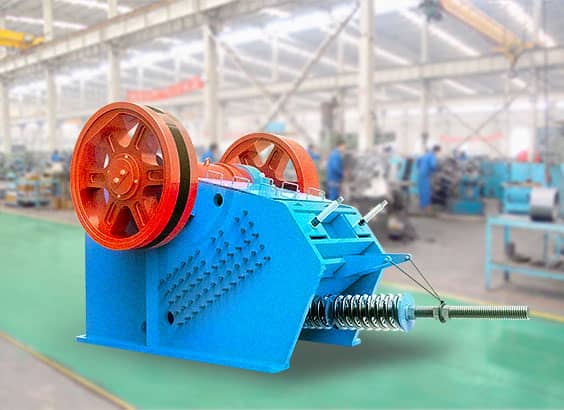

PEY Series Hydraulic Protection Jaw Crushers have function of overload protection. It means that when suddenly loaded by blovcks that can not be broken, the machine can instantly auto-unload them by means of its hydraulic protection device, which therefore effectively avoids excessive impact and blocking problem. This type of crusher is often used in the crushing and processing for metallurgical slags.

1.The crusher can be accordingly set with rated load to do selective crushing for materials containing differernt compressive strengths.

2.The crushers have quite reliable functions of impact protection and automatic discharging, which effectivelty resolve the blocking problems for continuous production.

Specification
Max. Feed Size(mm)
Discharge Opening Size(mm)
Capacity
(m3/h)
Main Shaft Rotating Speed(r/min)
Power
(kw)
PEY400×600
340
40-100
16-40
300
30
PEY400×750
340
20-80
20-50
300
45
PEY300×1300
250
20-90
15-70
300
75
PEY500×750
425
50-100
40-68
275
55
PEY600×900
500
75-150
60-120
255
90
PEY750×1060
630
80-200
110-150
250
110
PEY900×1200
720
100-250
140-280
250
132



PEY Series Hydraulic Protection Jaw Crusher Application

SPARE PART CENTER
  • Jaw Plate

    Jaw Plate

  • Tension Rod

    Tension Rod

  • Rod Spring

    Rod Spring

  • Tight Wedge

    Tight Wedge

  • Upper Side Protective Plate

    Upper Side Protective Plate

  • Lower Side Protective Plate

    Lower Side Protective Plate

  • Toggle Plate

    Toggle Plate

  • Toggle Washer

    Toggle Washer

Jaw Crusher  Spares
ASSEMBLING AND TRANSPORTATION

pey assembling and transportation
