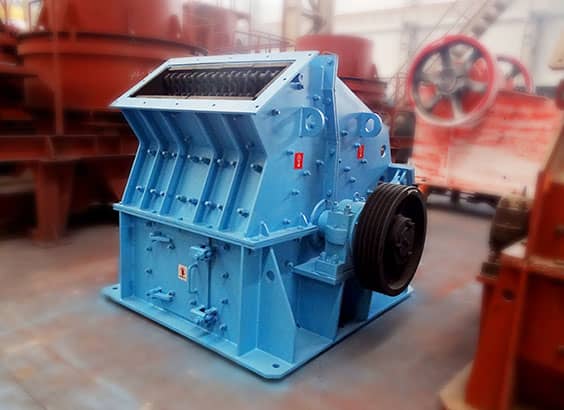

PFW series horizontal compound crushers are adjustable fine crushing equipments without grizzly bars. They feature in large crushing ratio, low consumption, even running and convenient for maintenance.

1. The crushing ratio is up to 15%.

2. Simple structure and low costs and much less worn by adopting the principle of stone to stone crushing.

3. The granularity can also be changed without influence by abrasion of hammer and lining.

4. Non grizzly bar, high water content to avoid blocking.

5. Horizontally placed bearing lasts a longer service life.

6. The special design of rotor avoids wear and tear.

7. Lead screw and hydraulic opening deveice are mounted to the hind cavity which helps to replace wearing parts.

Specification
PFW0805
PFW0808
PFW1010
PFW1210
PFW1212
Feed Size(mm)
<35
<35
<40
<60
<60
Discharge Size(mm)
<5(20~50%)
<5(20~50%)
<5(20~50%)
<5(20~50%)
<5(20~50%)
Capacity(t/h)
20-40
35-50
45-75
70-100
90-150
Power(kw)
45
55
90
132
160
Outline Dimension(mm)
1830×1630×1300
1830×1860×1300
2240×2280×1650
2600×2790×2100
2600×3040×2100
