Description

CMC series track-mounted mobile haw crusher is the favored primary crushing equipment for various hard and highly corrosive rocks and minerals. Utilized to crush materials in the primary stage, it mostly adopts the configuration form of “a feeder + a jaw crusher”.

Features

1. The anti-stopping system can effectively ensure the efficient non-stop operation of the equipment.

2. The hydraulic system can adjust the discharge opening size, which can also be adjusted during the working process.

3. This model can provide several choices of dynamic driving, with high flexibility and sufficient maneuverability and are exempt from supporting legs or fixed foundations during the mechanical operations.

4. The crushing rate can add up to 1:4 or even higher.

5. With the equipment of the hydraulic load sensing pump device, the fuel utilization rate can greatly increase by 25%.

6. With the highly efficient and stable operation mode, it requires no installation and commissioning, and can start production in half an hour.

7. The inclination angle of the crushing chamber bottom can be adjusted hydraulically, which leaves enough space for maintenance and transportation.

8. Equipped with the Relytec intelligent control panel that is easy to operate and the wireless remote control, it can reduce auxiliary operators, greatly improve the operating efficiency and save manpower cost.

Parameter

Equipment Model CMC96 CMC106 CMC116
Feed Hopper Feed Capacity(t/h) 150-350 150-350 150-350
Max Feed Size(mm) 580 580 580
Feed Height (mm) 3974 3974 3974
Feed Hopper Volume(m³) 4.8 4.8 4.8
Feed Equipment Model ZSW 400 * 110 ZSW 400 * 110 ZSW 400 * 110
Power(kW) 15 15 15
Crushing Equipment Jaw Crusher JC96 JC106 JC116
Feed Opening Size(mm) 930 * 580 1060 * 700 1150 * 760
Max Feed Size(mm) 480 600 640
Discharge Size Range (mm) CSS (closed side) 60-175 70-200 70-200
Capacity(t/h) 105-390 130-500 165-520
Power(kW) 90 110 110
Main Belt Conveyor Material Stacking Height(mm) 4000 4000 4000
Width * Length(mm) B=1000 L=135000 B=1000 L=135000 B=1000 L=135000
Power(kW) 18.5 18.5 18.5
Soil Removal Side Belt Conveyor Material Stacking Height(mm) 2255 2255 2255
Width * Length(mm) B=650 L=3000 B=650 L=3000 B=650 L=3000
Power(kW) 3 3 3
Self-Dumping Magnetic Separator Model * Power(kW) RCYQ1000 * 2.2 RCYQ1000 * 2.2 RCYQ1000 * 2.2
Track Chassis Walking Mode Track-Mounted Track-Mounted Track-Mounted
Walking Speed(km/h) 0.8 0.8 0.8
Max Climbing Angle 20° 20° 20°
Integrated Machine Driving Mode(Optional as requested) Hydraulic Driving / Grid Power Driving Hydraulic Driving / Grid Power Driving Hydraulic Driving / Grid Power Driving
Omni-Hydraulic Driving Omni-Hydraulic Driving Omni-Hydraulic Driving
Engine Model CUMMINS CUMMINS CUMMINS
Rated Power(kW) 200-500 200-500 200-500
Rated Rotation Speed(r/min) 1800 1800 1800
Total Weight(kg) 47268 54126 66126
Transport Dimensions: L * W * H(mm) 14109 * 2960 * 3625 14388 * 2960 * 3625 14888 * 3080 * 3730
Working Dimensions: L * W * H(mm) 16650 * 4530 * 4260 16929 * 4530 * 4527 17129 * 4650 * 4637

Note:
① The processing capacity of the crushing equipment is determined by material hardness, feed size, and discharge size.
② Standard: The main belt and tail material belt equipped with folding technology, PLC+ the display control, the iron separator, and the wireless remote control.
③ Optional: Omni-hydraulic driving, the material returning system, the dust collector spraying system, the diesel injection pump, the wired remote control, the centralized lubrication system.
④ We reserve the right of final interpretation of the data, subject to change without notice.

Machine Photo

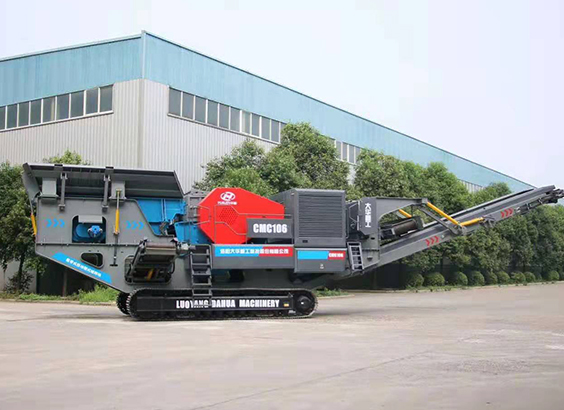

cmc mobile jaw crusher



crawler jaw crusher machine



mobile crawler jaw crusher
