Description

Track-mounted mobile cone crushing plants are utilized for crushing materials in the secondary and tertiary stages. For processing hard rocks, the configuration form of "a cone crusher + a screening machine" is mostly adopted. It adopts the high-strength casting steel frame, the alloy material forged main shaft, the high-precision arc-shaped spiral gear transmission structure, combining with a variety of chamber type options and the intelligent operation control system, which thus perfectly embodies its performance and advantages.

Features

1. Equipped with a cone crusher which has excellent performance, it is suitable for crushing in the secondary and tertiary stages.

2. It is easy to be transported directly between different working sites.

3. It boasts reasonable configuration, a smooth technical process, high production efficiency, and good product shape.

4. It can be utilized jointly with other mobile crushing plants and mobile screening plants.

Parameter

Equipment Model CMC200GS CMC200G CMC300GS CMC300G CMC300H
Feed Hopper Feed Capacity(t/h) 150-390 150-390 150-390 150-390 150-390
Feed Hopper Volume(m³) 6.3 6.3 6.3 6.3 6.3
Feed Belt Conveyor Model(W mm * L mm) B=1200 L=6100 B=1200 L=6100 B=1200 L=6100 B=1200 L=6100 B=1200 L=6100
Feed Height(mm) 3730 3730 3730 3730 3730
Power(kW) 18.5 18.5 18.5 18.5 18.5
Crushing Equipment Cone Crusher GPY200S GPY200 GPY300S GPY300 HPY300
Feed Opening Width(mm) 330 70-210 380 60-260 107-233
Max Feed Size(mm) 265 60-165 304 50-210 85-185
Discharge Size(mm) 35-45 15-25 40-45 10-30 6-45
Capacity(t/h) 225-345 135-215 440-520 140-345 75-430
Power(kW) 160 160 250 250 220
Main Belt Conveyor (W mm * L mm * Power kW) 1000 * 130000 * 15 1000 * 130000 * 15 1000 * 130000 * 15 1000 * 130000 * 15 1000 * 130000 * 15
Discharge Belt Conveyor (W mm * L mm * Power kW) 1200 * 6400 * 11 1200 * 6400 * 11 1200 * 6400 * 11 1200 * 6400 * 11 1200 * 6400 * 11
Transit Belt Conveyor (W mm * L mm * Power kW) 500 * 2650 * 4 500 * 2650 * 4 500 * 2650 * 4 500 * 2650 * 4 500 * 2650 * 4
Material Return Belt Conveyor (W mm * L mm * Power kW) 500 * 9000 * 5.5 500 * 9000 * 5.5 500 * 9000 * 5.5 500 * 9000 * 5.5 500 * 9000 * 5.5
Screen (W mm * L mm * Power kW) 1500 * 3600 * 7.4 1500 * 3600 * 7.4 1500 * 3600 * 7.4 1500 * 3600 * 7.4 1500 * 3600 * 7.4
Self-Dumping Magnetic Separator Model * Power(kW) RCYQ 1000 * 2.2 RCYQ 1000 * 2.2 RCYQ 1000 * 2.2 RCYQ 1000 * 2.2 RCYQ 1000 * 2.2
Track Chassis Walking Mode Track-Mounted Track-Mounted Track-Mounted Track-Mounted Track-Mounted
Walking Speed(km/h) 0.8 0.8 0.8 0.8 0.8
Max Climbing Angle 20° 20° 20° 20° 20°
Integrated Machine Driving Mode(Optional as requested) Hydraulic Driving / Grid Power Driving Hydraulic Driving / Grid Power Driving Hydraulic Driving / Grid Power Driving Hydraulic Driving / Grid Power Driving Hydraulic Driving / Grid Power Driving
Omni-Hydraulic Driving Omni-Hydraulic Driving Omni-Hydraulic Driving Omni-Hydraulic Driving Omni-Hydraulic Driving
Engine Model CUMMINS CUMMINS CUMMINS CUMMINS CUMMINS
Rated Power(kW) 200-500 200-500 200-500 200-500 200-500
Rated Rotation Speed(r/min) 1800 1800 1800 1800 1800
Total Weight(kg) 45100/53700 43295/51795 54290/63890 52190/61000 53200/62700
Transport Dimensions:
L * W * H(mm)
17150 * 3119 * 3800 17150 * 3119 * 3800 17150 * 3119 * 3800 17150 * 3119 * 3800 17150 * 3119 * 3800
Working Dimensions:
L * W * H(mm)
18130 * 3560 * 4965 18130 * 3560 * 4965 18940 * 3560 * 4706 18940 * 3560 * 4706 18940 * 3560 * 4706

Note:
① The processing capacity of the crushing equipment is related to material hardness, feed size, and discharge size.
② Standard: The main belt and tail material belt equipped with folding technology, PLC+ the display control, the iron separator, and the wireless remote control.
③ Optional: Omni-hydraulic driving, the material returning system, the dust collector spraying system, the diesel injection pump, the wired remote control, the centralized lubrication system.
④ We reserve the right of final interpretation of the data, subject to change without notice.

Machine Photo

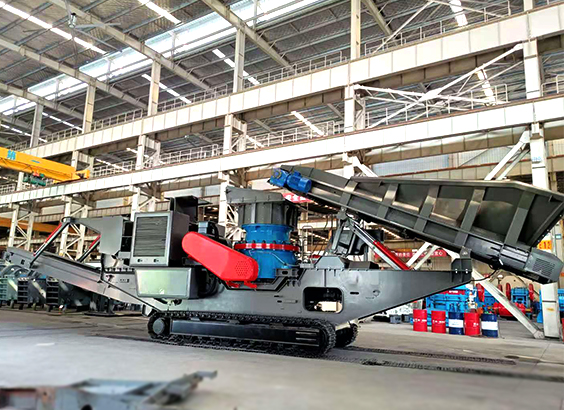

track cone crusher plant



mobile cone crusher station



cone crushing plant
