Description

CMC series track-mounted mobile impact crushing plants are utilized for crushing materials in the secondary and tertiary stages. For processing medium hard materials, the configuration form of "a feeder + an impact crusher+ a screen" is mostly adopted. It adopts a heavy-duty rotor body structure, a large volume crushing cavity, anti-wear alloy blow bars, heavy-duty impact-resistant impact lining plates, and a multi-point hydraulic adjustment and hydraulic opening device, ensuring super crushing capacity, crushing effect, large feed size, smaller discharge size, a high crushing ratio, and good product shape.

Features

1. The standard modular cavity body lining plates, and the tooth-shaped impact plates are interchangeable, with a higher utilization rate and a longer service life.

2. The discharge gap of the equipment can be flexibly adjusted according to the end product particle size and gradation requirements.

3. The unique three-cavity vortex structure makes feed size larger, capacity larger and product shape better.

4. The hydraulic opening and closing devices (Standard) or the specially used lifting tools (Optional) for replacement of blow bars, can provide flexible application and operation convenience.

5. It is easy to be transported directly between different working sites.

6. The configuration is reasonable, the technical process smooth, the production efficiency high, and the product shape good.

7. It can be utilized jointly with other mobile crushing plants and mobile screening plants.

Parameter

Equipment Model CMC1310 CMC1214
Feed Hopper Feed Capacity(t/h) 150-300 150-300
Feed Hopper Volume(m³) 4.5 4.5
Feed Equipment Model(Width mm * Length mm) ZSW 400 * 110 ZSW 400 * 110
Feed Height(mm) 4010 4010
Power(kW) 15 15
Crushing Equipment Impact Crusher PFY1310 PFY1214
Feed Opening Width(mm) 1000 1450
Max Feed Size(mm) 265 304
Discharge Size(mm) 30-45 35-45
Capacity(t/h) 165-200 220-260/300
Power(kW) 160 220/250
Main Belt Conveyor Model(W mm * L mm * Power kW) 1000 * 8100 * 11 1000 * 8100 * 11
Discharge Belt Conveyor Model(W mm * L mm * Power kW) 1200 * 6400 * 11 1200 * 6400 * 11
Transit Belt Conveyor Model(W mm * L mm * Power kW) 500 * 2650 * 4 500 * 2650 * 4
Material Return Belt Conveyor Model(W mm * L mm * Power kW) 500 * 8700 * 5.5 500 * 8700 * 5.5
Soil Removal Side Belt Conveyor Model(W mm * L mm * Power kW) 650 * 4380 * 4 650 * 4380 * 4
Vibrating Screen Model(W mm * L mm * Power kW) 1500 * 3600 * 7.4 1500 * 3600 * 7.4
Self-Dumping Magnetic Separator Model * Power(kW) RCYQ1000 * 2.2 RCYQ1000 * 2.2
Track Chassis Walking Mode Track-Mounted Track- Mounted
Walking Speed(km/h) 0.8 0.8
Max Climbing Angle 20° 20°
Integrated Machine Driving Mode(Optional as requested) Hydraulic Driving / Grid Power Driving Hydraulic Driving / Grid Power Driving
Omni-Hydraulic Driving Omni-Hydraulic Driving
Engine Model CUMMINS CUMMINS
Power(kW) 200-500 200-500
Rotation Speed(r/min) 1900 1900
Total Weight(kg) 45100/53700 43295/51795
Transport Dimensions: L * W * H(mm) 17150 * 3119 * 3800 17150 * 3119 * 3800
Working Dimensions: L * W * H(mm) 18130 * 3560 * 4965 18130 * 3560 * 4965

Note:
① The processing capacity of the crushing equipment is related to material hardness, feed size, and discharge size.
② Standard: The main belt and tail material belt equipped with folding technology, PLC+ the display control, the iron separator, and the wireless remote control.
③ Optional: Omni-hydraulic driving, the material returning system, the dust collector spraying system, the diesel injection pump, the wired remote control, the centralized lubrication system.
④ We reserve the right of final interpretation of the data, subject to change without notice.

Machine Photo

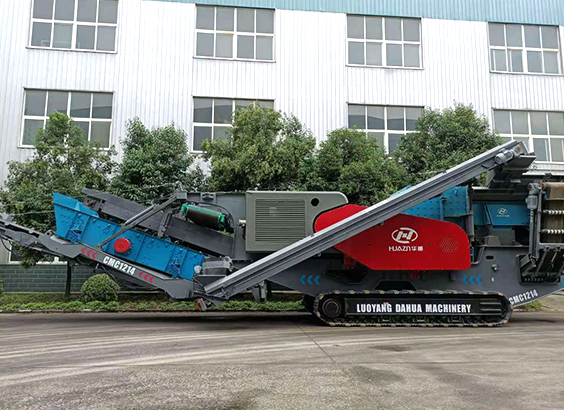

crawler mobile impact crusher



track mobile crusher



crawler mobile impact crusher
