Configuration of 400 T/H Basalt Crushing Production Line

author:dahua time:2019-10-18

Basalt has the advantages of strong compression resistance, low crushing value, strong corrosion resistance and asphalt adhesion, so it is mostly used in the construction of highways, railways, airports, hydroelectric dam and other projects.

The 400 T/H basalt crushing production line is composed of jaw crusher, hydraulic cone crusher and sand making machine as core crushing equipment, supporting crushing equipment including vibrating feeder, vibrating screen, belt conveyor and electric control system. The whole production line forms a closed loop.

400 T/H basalt crushing production line equipment configuration

Equipmnet Fedding size      Processing Capacity   Power
ZSW 1560 vibrating feeder 900 mm 400-750 t/h 37 KW
ASD 4836 jaw crusher 1200*910 mm 280-620 t/h 160 KW
GPY 300S cone crusher 380 mm 350-520 t/h 250 KW
HPY 300 cone crusher 25-233 mm 75-430 t/h 220 KW
PLS 1000II sand making machine 60 mm 200-585 t/h 320-500 Kw
3YKR 2460 vibrating screen 200 mm 120-880 t/h 45 KW
3YKR 2475 vibrating screen 200 mm 150-900 t/h 55 KW

Basalt crushing production line process flow

 Firstly, the basalt is fed to jaw crusher through vibrating feeder for primary crushing, and the cone crusher is used for medium and fine crushing in the secondary crushing process. The processed materials from secondary crushing are transferred to vibrating screen for screening, the materials not meet the requirement for sand making machine are return to the secondary crushing equipment, forming a closed cycle. The required materials are fed to sand making machine for shaping and sand making. The sands from the sand making machine are screened again by vibrating screen, the qualified parts are conveyed to the finished products pile, and the unqualified products are fed back to sand making machine for further crushing.

Recommended equipment of basalt crushing production line

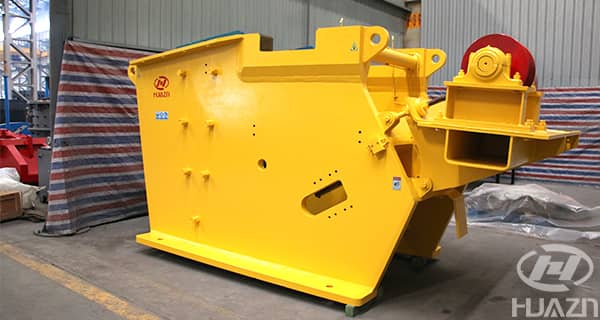

basalt jaw crusher

ASD jaw crusher

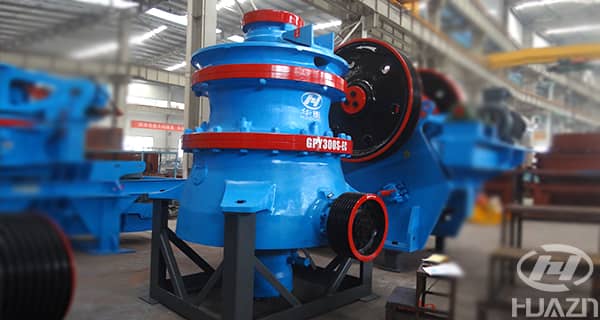

basalt cone crusher

GPY cone crusher

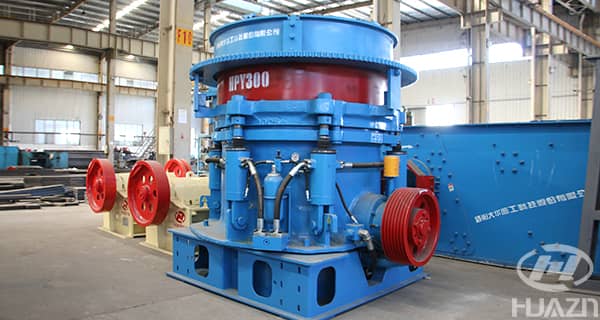

basalt cone crusher

HPY cone crusher

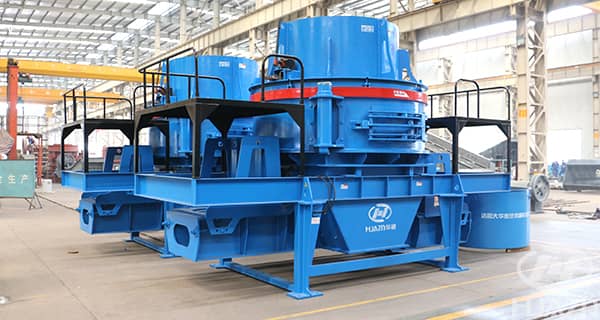

basalt sand making machine

PLS sand making machine

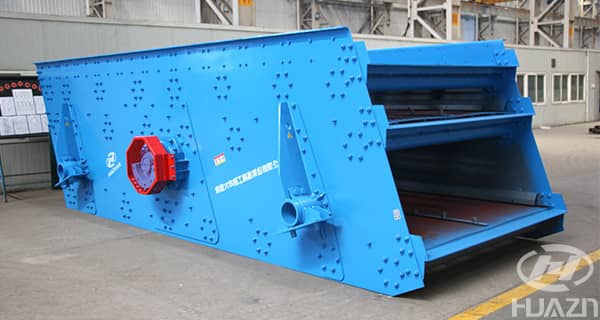

basalt stone vibrating screen

YKR vibrating screen
