Description

This series product is mainly used in autogenously grinding and separating slag and steel to improve the production and grading. It also can be used in foundry works to remove the bonding residue on the small casting pieces' surface, etc.

Features

1. Low installed power of equipment for energy saving, simplestructure for easy installation.

2. Instead of medium, this machine depends on the strike between materials themselves to realize the seperation.

3. Unique tube struture ensures small diacharge granuality and thus high productivity.

Working Principle

The grinder uses the materials to be ground as the media, through mutually impacting and grinding to realize crushing. Tube mill: Inside the cylinder, there are some grinding media. Under the friction force and centrifugal force, the media and materials feed into the cylinder are lifted to a certain height with the cylinder rotating around the horizontal axis. If their gravity are large than the centrifugal force, the materials will drop down, and to be crushed by the impacting force. At the same time, the movement between the grinding media also has the function of grinding for the materials during the rotation process.

Parameter

Model
ZM250
ZM2560
ZM3040
ZM3060
Barrel
(mm)
Diameter
2500
2500
3000
3000
Length
4000
6000
4000
6000
Rotate speed of barrel(r/min)
17-24
17-24
17-20
17-20
Max feed size(mm)
300(40)
300(40)
300(50)
300(50)
Max feed temperature( 0C)
50
50
50
50
Mesh Size (mm)
30-50(1-10)
30-50(1-10)
30-50(1-10)
30-50(1-10)
Capacity (t/h)
17-25
20-30
25-35
30-40
Inclination angle of barrel
(°)
0-2
0-2
0-2
0-2
Power (kw)
110-132
160-200
160-220
250-280
Dimension    (mm)
7800×4900×4800
8600×4700×5800
7300×4700×5600
9300×4500×5400
Weight (kg)
53400
73608
67957
98600

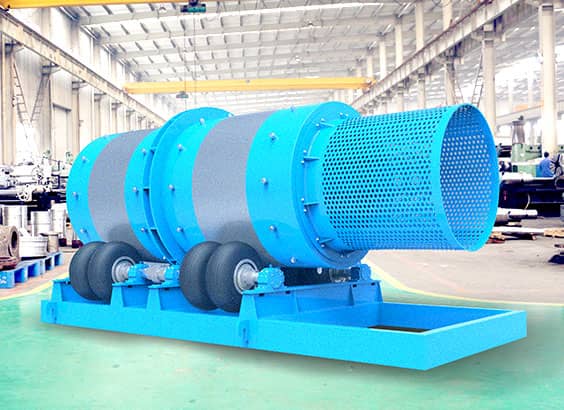

Machine Photo

zm assembling and transportation

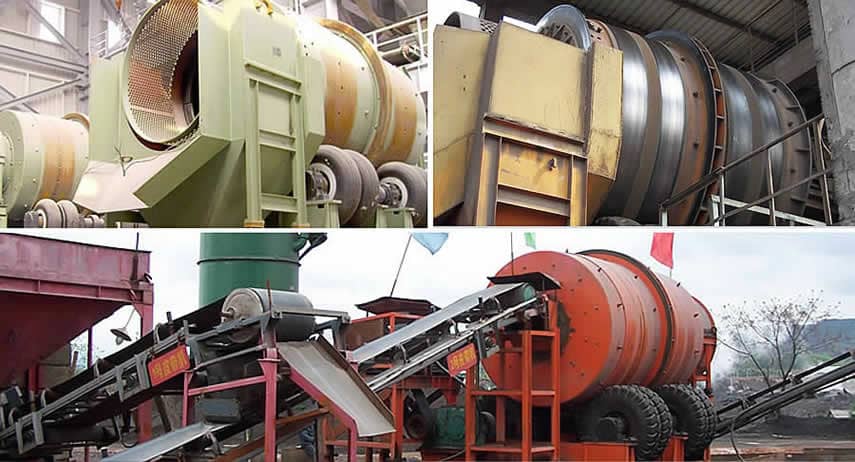

Customer Cases

ZM Series Slag Steel Autogeneous Mill Application
