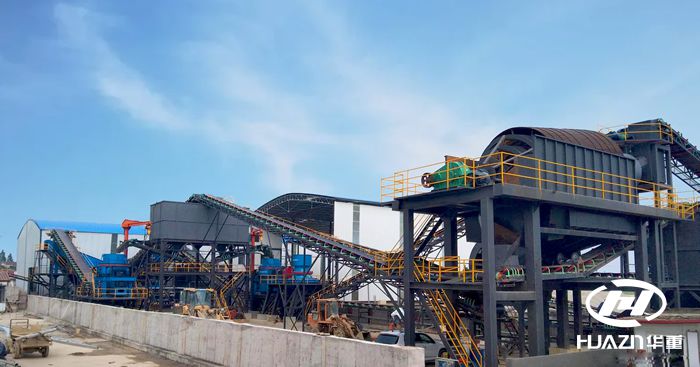

In the field of sand and gravel aggregate production, manufactured sand production lines are mainly divided into two types: stationary and mobile. Among them, stationary manufactured sand production lines, with their significant advantages such as flexible configuration, large crushing ratio, high production efficiency, and large processing capacity, have become the preferred solution for large-scale sand and gravel production bases. They can be customized to meet the user's capacity requirements, raw material characteristics, and finished product specifications, producing high-capacity systems ranging from tens to thousands of tons per hour. A complete stationary manufactured sand production line typically consists of five core stages: feeding, crushing, sand making, screening, and sand washing, along with auxiliary systems. These stages work closely together to achieve efficient conversion from raw materials to finished sand.



The process flow of a stationary manufactured sand production line follows the logic of "raw material pretreatment - multi-stage crushing - sand making and shaping - grading and screening - finished product purification." The equipment configuration and working principles of each stage are clearly defined.





1. Feeding Stage



The feeding stage typically uses a vibrating feeder, which can uniformly and continuously feed the lumpy raw materials from the stockpile into the subsequent crushing equipment. Simultaneously, its built-in screen removes soil and fine materials from the raw materials, reducing the load on subsequent crushing processes. 2. Crushing Stage



The crushing stage consists of three stages: coarse crushing, medium crushing, and fine crushing. Coarse crushing typically uses a JC jaw crusher to initially crush large pieces of raw material, reducing their particle size to a suitable range for medium and fine crushing. Medium and fine crushing equipment is selected based on the hardness of the raw material. High-hardness materials such as granite and basalt are suitable for cone crushers, while medium-to-low hardness materials such as limestone and shale can be crushed using impact crushers to further break the material to the particle size required for sand production.



3. Sand Making Stage



Sand making is the core of the production line. The mainstream equipment is a vertical shaft impact crusher (sand making machine). Using the principle of "stone against stone" or "stone against iron," it transforms the crushed stone into particles that meet the standards for construction sand and shapes the sand particles to improve the roundness of the finished sand.



4. Screening Stage



Screening utilizes circular or linear vibrating screens to classify the sand-making material according to different particle sizes. Qualified finished sand enters the washing stage, while unqualified coarse material is returned to the sand making machine or medium/fine crushing equipment for further processing, forming a closed-loop cycle.



5. Washing Stage



Washing can be configured with spiral sand washers or bucket wheel sand washers as needed. Water flow removes mud, powder, and impurities from the finished sand, improving its cleanliness. Some production lines also include fine sand recovery machines to reduce fine sand loss and improve resource utilization.



In summary, fixed manufactured sand production lines, through systematic equipment configuration and refined process flows, achieve large-scale, efficient, and standardized sand and gravel production. Whether considering the precision of raw material processing or the stability of finished sand quality, it provides reliable aggregate support for infrastructure construction such as buildings, roads, and water conservancy, making it one of the mainstream solutions in the current sand and gravel production field.
