In the current era of high-quality development in infrastructure projects, large-scale, intelligent, and green aggregate production lines have become the industry mainstream. Luoyang Dahua Heavy Industry, with over 60 years of experience in the mining crushing field, has tailored a 1500-ton-per-hour aggregate production line. Its core equipment is entirely self-developed and self-produced, suitable for various hard rock materials such as granite, limestone, and pebbles. The finished aggregate has excellent particle shape and reasonable gradation, and is widely used in key projects such as highways, high-speed railways, and large-scale water conservancy projects. With its advantages of high capacity, low energy consumption, and stable operation, it helps customers maximize their benefits.



I. Scientific Process Layout, Stable Capacity Achieved The production line adopts a mature process of "three-stage crushing + multi-stage screening + intelligent control," with a simple and efficient process that avoids bottleneck steps, ensuring a continuous and stable output of 1500 tons per hour.

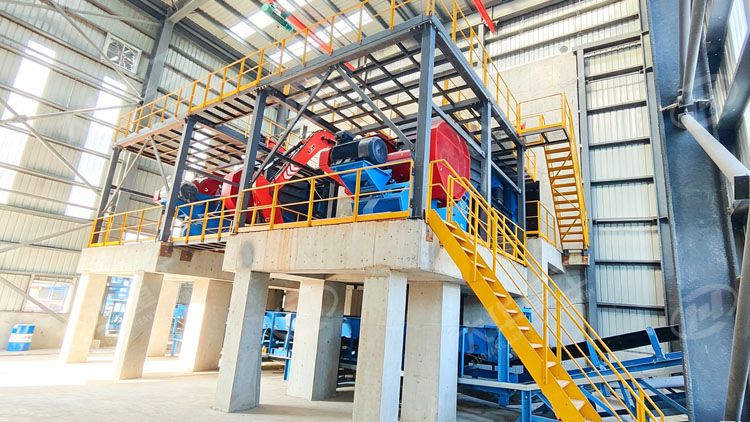

Coarse crushing stage: Utilizing Dahua Heavy Industry's JC series jaw crusher, featuring a large feed opening and high crushing ratio, it can process large stones up to 1200mm in size, with a single machine output of up to 500 tons per hour, coarsely crushing materials to 150-200mm, laying the foundation for medium crushing. Its moving jaw is made of high-strength cast steel, and the jaw plates are made of ultra-high manganese steel, making them wear-resistant and durable, effectively preventing material jamming and stalling.





Medium and fine crushing stage: Equipped with Dahua GPY/HPY series hydraulic cone crusher, employing high-energy layered crushing technology, optimizing the crushing chamber shape and eccentricity, processing coarsely crushed materials to 20-50mm, combining crushing and shaping functions. The finished product has a low content of needle-like and flaky particles, and a round and regular particle shape. The fully hydraulic operation and automatic control system can adjust the discharge gap in real time to adapt to different particle size requirements.

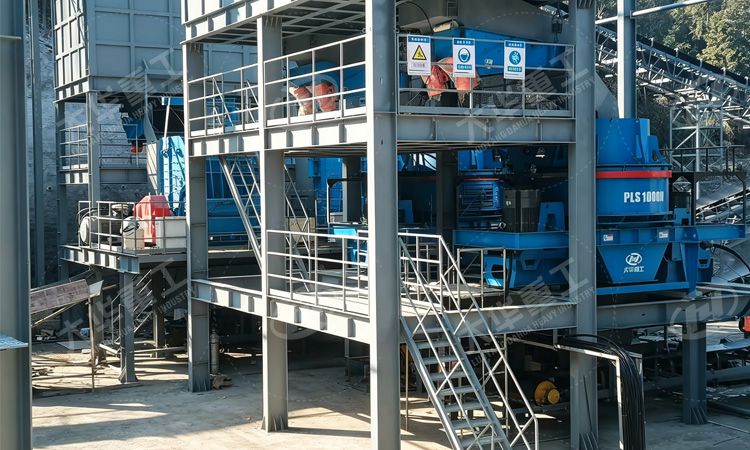

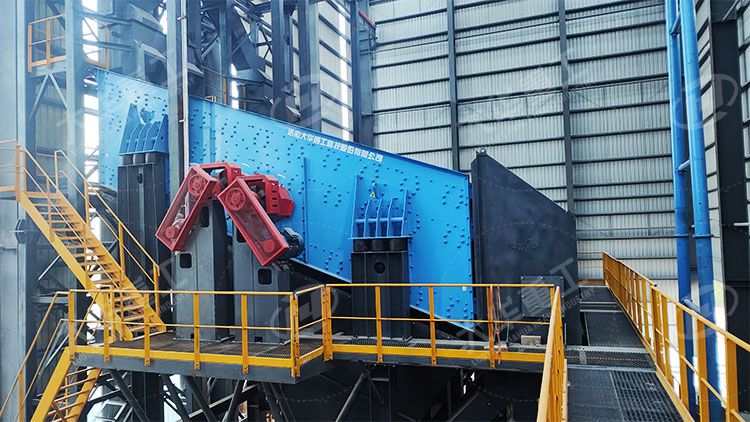

Screening and Shaping: Equipped with a YKR series heavy-duty vibrating screen, the multi-layered screen accurately grades and separates standard aggregates of 0-5mm, 5-16mm, and 16-31.5mm. A PLS series vertical impact crusher further shapes the material, ensuring the finished aggregate meets high-grade construction material standards.



II. Dahua Heavy Industry Core Equipment: Robust and Reliable Quality

The core crushing and screening equipment of the entire production line is independently developed and manufactured by Dahua Heavy Industry. From casting processing to complete machine assembly, strict quality control is implemented throughout the entire process. The equipment boasts high strength and wear resistance, adapting to high-intensity continuous operation and significantly reducing maintenance costs.



The feeding equipment uses a ZSW series bar vibrating feeder, offering both uniform feeding and pre-screening functions to separate soil and impurities, improving subsequent crushing efficiency.



The conveying equipment uses a closed belt conveyor, ensuring stable operation and large conveying capacity. Its sealed design minimizes dust leakage.



The core equipment is equipped with an intelligent monitoring system that monitors parameters such as temperature, vibration, and load in real time, automatically alarming for abnormalities to ensure safe operation and extend service life.



III. Green and Intelligent Dual-Empowerment for Compliant and Efficient Production

* Environmentally Friendly Zero Emissions: The entire line is equipped with a pulse dust removal system, operating in a closed system, with dust emission concentrations below national standards. It also features a fine sand recovery device and a circulating water system, achieving zero wastewater discharge and full fine sand recovery, saving resources and protecting the ecological environment.



* Intelligent Automation: Utilizing Dahua Heavy Industries' self-developed central intelligent control system, it allows for one-button start/stop and remote control, real-time monitoring of production data, and automatic adjustment of equipment operating parameters, reducing manual intervention, lowering labor costs, and improving production efficiency.



IV. Flexible Adaptability and Comprehensive Lifecycle Service

This production line can be customized with different processes and equipment configurations based on raw material characteristics (hardness, mud content) and finished product requirements (particle size, particle shape), adapting to various scenarios such as open-pit mining and construction waste recycling.



Dahua Heavy Industry provides a full-process, one-stop service, from solution design, equipment manufacturing, installation and commissioning, to operator training and post-operation maintenance, offering professional follow-up throughout to ensure rapid project commissioning and stable operation, creating long-term value for customers.
