In the global screening equipment market, the CMS1560 crawler type mobile screening plant developed by Luoyang Dahua Heavy Industry is gradually becoming a star product for export to foreign markets with its excellent performance and unique advantages, providing efficient solutions for complex working conditions in different countries and regions.



High-performance equipment adapted to complex working conditions

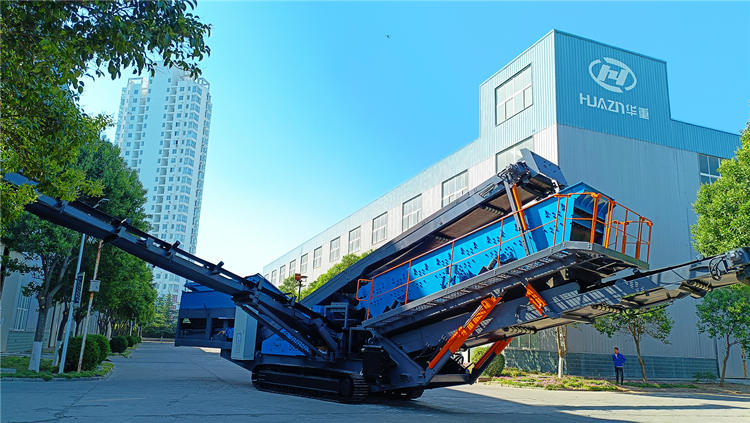

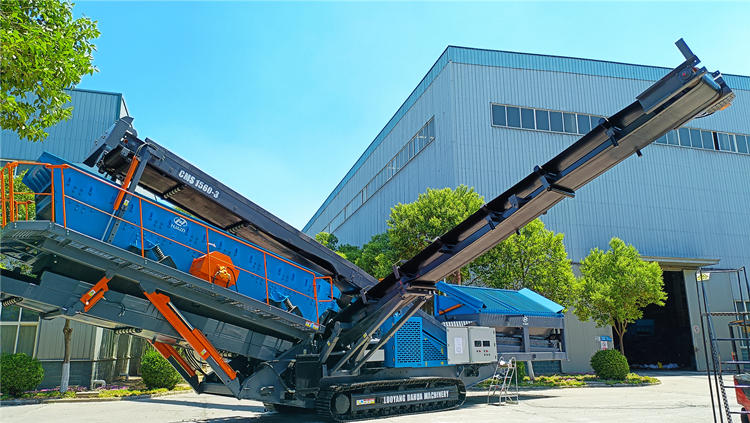

The CMS1560 crawler type mobile screening plant is a screening equipment carefully built by Luoyang Dahua Heavy Industry based on global market demand. It adopts modular design and full hydraulic drive, which can perfectly adapt to complex working conditions such as local mining development and construction waste treatment. The equipment is also equipped with an intelligent control system, which achieves a multi-dimensional balance between screening efficiency, transportation convenience and environmental adaptability, providing users with a full range of high-quality experience.



Powerful core technical parameters

The CMS1560 crawler type mobile screening plant has impressive core technical parameters. Its processing capacity reaches 300t/h, and it can adapt to the maximum feed particle size of 110mm, which can meet the needs of large-scale production. The drive system adopts generator set + motor dual-mode drive and realizes full hydraulic control. The walking speed is 0.8km/h and has a 20° climbing ability, which ensures the flexible movement of the equipment under different terrain conditions. The screening system is equipped with a 1500×6000mm three-layer screen box and an integrated RCYQ1000 magnetic separator, which effectively improves the screening effect. In terms of transportation, the equipment size is 17050×2880×3706mm, and the folding belt conveyor can achieve rapid transfer, greatly improving the operating efficiency.

Five core advantages highlight excellent performance



• Intelligent screening adjustment system



CMS1560 is equipped with an advanced intelligent screening adjustment system, which uses amplitude/frequency stepless adjustment technology. Taking Mexican high-humidity clay materials as an example, this technology can improve the screening efficiency by 15%. At the same time, it adopts PLC + touch screen dual interactive interface, supports wireless remote control operation with an effective control radius of 300 meters, and facilitates operators to flexibly control the equipment in different scenarios.



• Innovative vibration reduction structure

The innovative vibration reduction structure is a highlight of the equipment. The application of composite rubber spring + hydraulic damping system reduces the measured startup resonance amplitude by 63%, effectively reducing the impact of equipment vibration on itself and the surrounding environment. The modular quick-release design shortens the screen replacement time to 25 minutes, greatly improving the maintenance efficiency of the equipment.



• All-weather operation capability

Considering the complex environment in different regions, CMS1560 has all-weather operation capability. The standard dust removal spray system (optional diesel injection pump) makes the PM2.5 emission value <15μg/m³, which meets strict environmental protection standards. The Cummins/Weichai dual power pack configuration ensures that the equipment can be started smoothly in a low temperature environment of -25℃ and adapt to various harsh climatic conditions.



• Dynamic transportation system

The dynamic transportation system provides strong support for the rapid transfer of equipment. The four-stage folding belt unit (main belt 1200×8000mm) has an unfolding/storage time of <8 minutes, which greatly saves time costs. The ship-type crawler chassis design has a ground pressure of less than 35kPa, which reduces the pressure on the ground and enables the equipment to travel stably under different ground conditions.



•  Wide range of typical application scenarios

The CMS1560 crawler type mobile screening plant has shown excellent application effects in many fields. In the production of recycled aggregates for construction, it forms a joint workstation with a mobile impact crusher, successfully processing concrete waste from the renovation of the old city of Mexico City, and realizing the effective reuse of construction waste. In the field of copper tailings dehydration, 280 tons of tailings slurry dehydration per hour was achieved in the Chihuahua mining area, improving the utilization rate of mineral resources. In view of the characteristics of Popocatepetl volcanic rock, the customized polyurethane screen makes the qualified rate of volcanic rock grading products reach 98.6%, which fully reflects the professionalism and adaptability of the equipment.

In summary, the CMS1560 crawler type mobile screening plant  has great potential and competitiveness in the export foreign market with its advanced design, powerful performance and wide range of application scenarios, and is expected to bring new changes and development to global screening operations.
