How to adjust the CSS of Jaw Crusher?

author:dahua time:2021-04-08

How to adjust the CSS of jaw crusher? We know that different ores have different crushing degrees and different sizes, and the material particle size is closely related to the discharge port. Jaw crusher, as a common crusher equipment, occupies an important position in the crusher industry. Jaw crusher has the characteristics of large crushing ratio, good performance and high efficiency. The discharging port of the jaw crusher can be adjusted according to the needs of customers. How to adjust the CSS of jaw crusher?

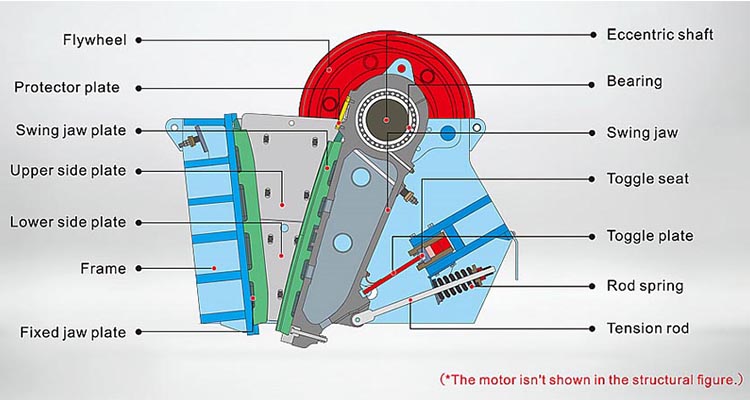

jaw crusher structure

First, the width of the discharge port is adjusted and set with the backing plate. The principle of action is to put a group of adjusting pads behind the rear thrust plate support. When the number or thickness of the pads is changed, the rear thrust plate can either move or retreat to adjust the width of the discharge port. This adjusting device has the advantages of simple structure, compact structure and little weight increase of the whole machine. Therefore, it is very suitable for large and medium-sized jaw crusher.

Two, the inclined iron assists the setting of the width of the discharge port. The inclined iron is used to adjust the width of the discharge port. It can use bolts or chain transmission device, so that the rear inclined iron lifting, the front inclined iron is installed in the two side wall of the frame guide groove, can only move horizontally. When the back inclined iron is lifted, the forward inclined iron moves forward along the guide groove, the thrust plate and the moving jaw move forward, and the width of the discharge port also decreases. On the contrary, when the rear inclined iron decreases, the width of the discharge port increases.

Luoyang Dahua has mini jaw crusher, large jaw crusher, hydraulic jaw crusher, mobile jaw crusher. The company can provide free technical support, free solution design, and complete after-sale service. If you want to know more, please send message to [email protected]

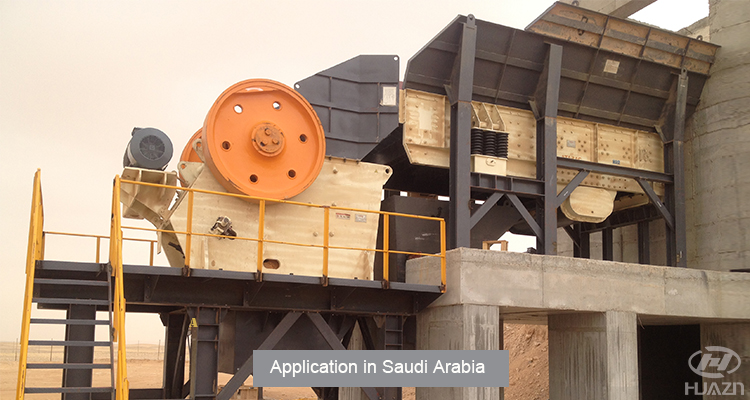

jaw crusher application
