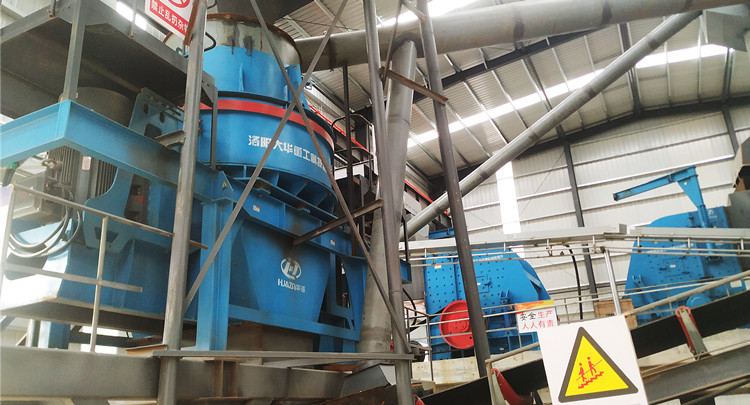

Limestone is a high-quality, non-metallic mineral that is abundant and easy to mine. The aggregates and manufactured sand produced through crushing and sand-making processes are widely used in highways, railways, water conservancy projects, concrete mixing plants, and cement production; it is currently one of the most widely used raw materials in the infrastructure and construction material industries. A complete limestone crushing and sand-making plant consists of various types of equipment working in concert, including systems for feeding, primary crushing, secondary and tertiary crushing, sand making and screening, conveying, and environmental protection. The equipment across the entire line can be clearly categorized into core units based on the process sequence; each piece of equipment performs its specific function to ensure efficient and stable operation.





1. ZSW Vibrating Feeder (Feeding Stage)



Installed beneath the raw material hopper, this unit delivers large limestone blocks evenly and continuously into the primary crusher. Its integrated pre-screening structure removes soil and fine particles from the raw material beforehand, preventing waste material from entering the crushing chamber and significantly enhancing the processing efficiency of subsequent stages.



2. JC Jaw Crusher (Primary Crushing Stage)



As a classic primary crusher model, it features an optimized deep crushing chamber design capable of handling large limestone blocks with maximum dimensions exceeding one meter. It crushes material by applying compressive and bending forces through the periodic reciprocating motion of the moving jaw. Characterized by a reliable structure, high compressive strength, and ease of maintenance, it is specifically designed to process raw stone into medium-sized material (approximately 100–300 mm), providing suitable feed for the subsequent secondary and tertiary crushing stages. 3. PFQ Impact Crusher (Secondary/Fine Crushing Stage)



This equipment features a high-inertia rotor and a three-chamber crushing structure. It utilizes the high-speed impact of blow bars and repeated collisions with impact liners to crush material. It is highly suitable for medium-hardness materials like limestone; it offers high crushing efficiency and also shapes the crushed material, producing cubic aggregates with minimal needle-like or flaky particles. It fully meets quality standards for high-grade construction aggregates and is responsible for further processing material from the jaw crusher into small-to-medium-sized stones (30–80 mm).



4. PFL Compound Crusher (Fine Crushing and Sand-Making Stage)



Featuring a vertical structure, this machine combines the advantages of hammer crushers and impact crushers. Its grate-free design accommodates limestone with a moisture content of up to 15% and resists clogging. With a crushing ratio of 15–40, it can crush medium-sized material directly into 0–5 mm fines in a single pass, making it ideal for fine crushing operations in small-to-medium-scale production lines.



5. PLS Vertical Shaft Impact Crusher (Sand-Making and Shaping Stage)



The PLS Vertical Shaft Impact Crusher and PFL Compound Crusher can be selected based on specific capacity and product requirements. The PLS model utilizes "rock-on-rock" and "rock-on-iron" crushing principles, where material collides and breaks under the centrifugal force of a high-speed rotor. It performs both shaping and sand-making functions, producing sand with rounded particle shapes and continuous gradation. It is core equipment for large-scale manufactured sand production, yielding sand that fully meets standards for commercial concrete.



6. YKR Circular Vibrating Screen (Screening Stage)



The circular vibrating screen uses multiple decks of mesh to grade crushed material into various finished product specifications based on particle size. Oversized material is screened out and returned via belt conveyor to the corresponding crushing equipment for reprocessing, creating a closed-loop circuit that ensures all output meets production size requirements. Material transfer across the entire production line is handled entirely by belt conveyors, linking the various processing units and eliminating the need for manual handling, thereby significantly reducing labor intensity. Additionally, integrated environmental protection systems—such as pulse-jet bag dust collectors and closed-loop water circulation systems—effectively control dust and wastewater emissions, ensuring compliance with modern green production standards.



The equipment configuration for limestone crushing and sand-making lines is flexible and can be tailored to specific project capacities, raw material characteristics, site conditions, and end-product requirements; there is no "one-size-fits-all" template. If you are planning to set up such a production line, please feel free to contact us online. Our professional engineering team can assess your specific operating conditions, capacity targets, and product specifications to design a customized, optimal solution, providing comprehensive services that cover everything from equipment selection and layout design to installation and commissioning.
