Maintenance of Stone Vibrating Feeder

author:dahua time:2020-05-27

The vibrating feeder is one of the indispensable auxiliary equipment in the sand and stone production line, which can continuously and uniformly feed the block material into the crushing machine and conduct coarse screening of the material. The efficient production of a complete sand and gravel production line is inseparable from the smooth and stable operation of each equipment. Therefore, in order to ensure the stable operation of vibration feeder, its maintenance is essential in production. So, we need to do the followings:

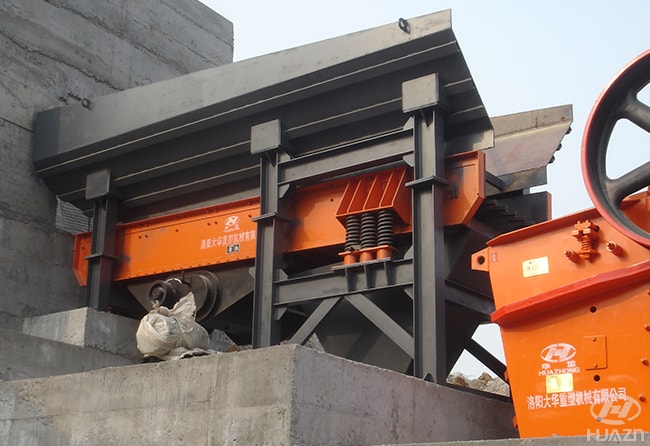

stone vibrating feeder

1. Should often check the amplitude of vibrating feeder, vibration motor current and motor surface temperature in the running process. It is required that the amplitude before and after is uniform, and the vibration motor current is stable. If the abnormal situation is found, should stop the processing immediately.

2. The bearing lubrication of vibrating feeder is the key to the normal work of the whole feeding machine. The bearing should be lubricated regularly during use, and the molybdenum disulfide grease should be added once every two months, and in the high temperature season once a month. The motor should be repaired every six months to replace the internal bearing.

3. Check regularly whether there is any change in the working air gap between the electromagnet and the armature, especially after re-tightening the compression bolt of the plate spring, and clean the iron and debris in the air gap at the same time.

stone crushing with vibrating feeder

Advantages of vibrating feeder

1. Simple structure and stable vibration.

2. Special screen design, adjustable gap, effectively prevent material blockage.

3. Low working noise is conducive to improving the working environment.

4. Variable frequency speed-regulating motor is optional. By adjusting the frequency, the feeding amount can be changed, and the motor need not be started frequently.

5. At the same time of feeding, fine materials can be screened to improve crushing efficiency.
