Sand production line Crusher Machine Configuration of Different Stone Materials

author:dahua time:2021-03-22

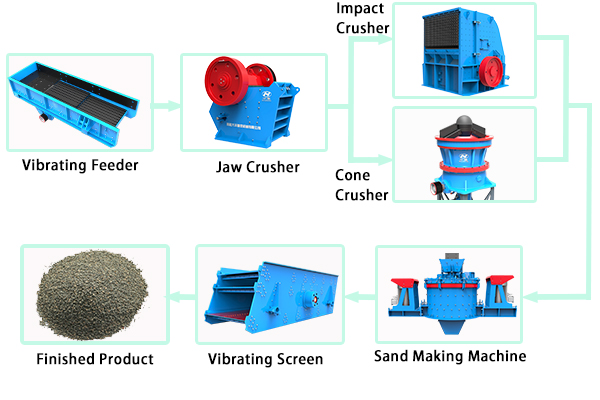

Detailed process of sand production line

Step one: materials feeding

After blasting the stone from the mountain, it is fed to the vibrating feeder by the dump truck.

Step two: coarse and fine crushing

The vibrating feeder sends the stone evenly into the jaw crusher. The jaw crusher is the first crushing process machine. The stone from the jaw crusher is then transported to the cone crusher or the impact crusher through the belt conveyor for the secondary crushing, that is, fine crushing.

The third step: sand making and screening

The finely crushed materials are sent to the sand making machine by the belt conveyor for fine crushing, and the finely crushed materials are sorted out of different specifications and sizes through the vibrating screen.

The general sand production line can be completed by the above three steps, but for those with strict requirements on the powder content of sand, a sand washing machine can be added after fine screening.

granite sand production line

Sand production line configuration of different materials

1. Pebble sand production line

Characteristics of pebbles: the main composition of pebbles is silica, with the advantages of non-toxic and tasteless, strong corrosion resistance, hard quality, strong pressure resistance, it is the main material for the production of artificial sand, and also is a kind of green building materials.

Pebble sand production line configuration:

A pebble sand production line with output of 50-70 tons is equipped with the following equipment: vibrating feeder + 2 jaw crusher + sand making machine + vibrating screen + sand washing machine + fine sand recovery machine + belt conveyor

2. Granite sand production line

Characteristics of granite: granite is hard, with high strength, wear resistance, anti weathering, which is a good building material. Granite is rich in resources, low mining cost but high product value.

Granite sand production line configuration:

A 80-130 tons granite sand production line equipment configuration is: vibrating feeder + 2 jaw crusher + vibrating screen + cone crusher + sand making machine + sand washing machine + fine sand recovery machine + belt conveyor

3. Sandstone sand production line

Characteristics of sandstone: sandstone is a sedimentary rock, most of the sandstone is composed of quartz or feldspar. Sandstone is widely used as a kind of building stone.

Sandstone sand production line configuration:

A sandstone sand production line with 60-80 tons per hour is equipped with the following equipment: silo + vibrating feeder + jaw crusher + impact crusher + sand making machine + vibrating screen + sand washing machine + fine sand recovery machine + belt conveyor

4. Limestone sand production line

Characteristics of limestone: the main composition of limestone is calcium carbonate, belongs to the middle and low hardness, which is often used as building materials, and industrial raw materials. Limestone sand production lines are also very common.

Limestone sand production line configuration:

A limestone sand production line with 100-150 tons per hour is equipped with the following equipment: silo + vibrating feeder + jaw crusher + impact crusher + sand making machine + vibrating screen

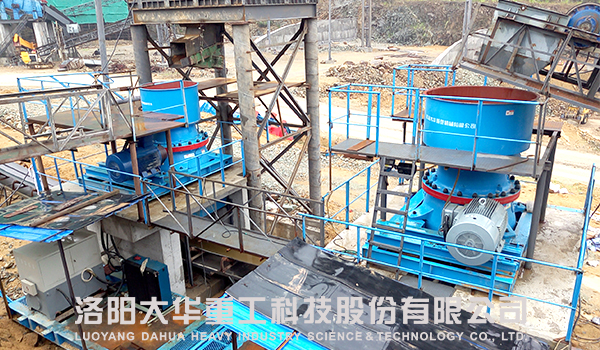

stone cone crusher machine

Advice: when building a new sand production line, we must choose the equipment and manufacturer according to our own needs. This design of the production line scheme and equipment configuration are relatively more reasonable, product quality is more reliable.

Luoyang Dahua is a large-scale crusher manufacturer, focus on manufacturing various mining crusher machine, mill machine, sand washer, mobile crusher plant. If you want to know more information about complete stone crushing production line, please contact us [email protected].
