In the construction industry, sand and gravel aggregates are the core raw materials for concrete and mortar. High-quality manufactured sand is produced through strict process control, with a fineness modulus controlled between 2.6 and 3.0, a stone powder content of 3%–8%, a moisture content of 3%–5%, and a needle-like/flaky particle content of less than 8%. Compared to ordinary manufactured sand, high-quality manufactured sand has a more scientifically reasonable particle size distribution, a particle shape closer to the ideal state, and significantly enhanced adhesion to cement paste, thus effectively improving concrete density; its superior performance effectively enhances the durability of building structures.

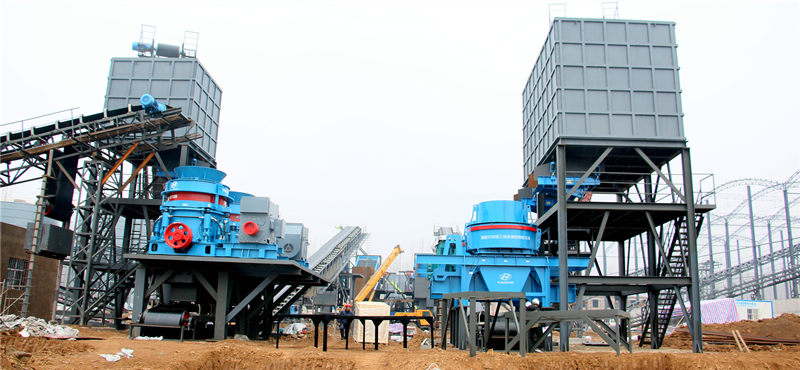

The production process of manufactured sand is a multi-stage, refined processing process. The core steps include raw material crushing, screening and grading, sand making and shaping, washing and recycling, and finished product processing. This process, through scientifically configured equipment, achieves the transformation from natural rock to high-quality sand and gravel.



1. Raw Material Feeding and Coarse Crushing

Process: Large stones are evenly fed into a jaw crusher by a vibrating feeder for coarse crushing, with an output particle size of approximately 50mm.



Equipment:JC Jaw Crusher, made of high-strength wear-resistant materials, ensuring stable operation in hard rock crushing with a low failure rate and convenient maintenance.



2. Medium Crushing and Pre-screening:

Process: Coarsely crushed material is conveyed to the pre-screening stage. Material smaller than 12mm after screening directly enters the subsequent sand making process, avoiding over-crushing; material larger than 12mm enters the medium crushing equipment.



Equipment: GPY Single-cylinder Cone Crusher, designed for medium-to-high hardness stone, efficiently handles medium crushing tasks, optimizing energy consumption and output balance.



3. Fine Crushing and Sand Shaping:

Process: The medium-crushed material enters a vertical shaft impact crusher for fine crushing and shaping, producing sand particles smaller than 5mm, ensuring full particle shape and appropriate angularity.



Equipment: PLS Vertical Impact Crusher, employing both "stone-on-stone" and "stone-on-iron" crushing methods, combined with optimized cavity design, significantly improving concrete strength and durability. Its deep-cavity rotor design and high linear velocity achieve high efficiency and high output.



4. Screening, Grading, and Washing/Recycling:

Process: After sand making, the material is screened by a vibrating screen. Sand meeting the particle size requirements enters the washing/sorting stage to remove mud and stone powder; a fine sand recovery device recovers fine particles, improving the yield.



Equipment: YKR vibrating screen, precise grading ensures optimized sand-to-gravel ratio; DXS bucket wheel sand washer cleans the sand, removing impurities and ensuring the cleanliness of the finished product.



5. Finished Product Processing and Environmental Protection Measures:

Process: The washed manufactured sand is conveyed to the finished product storage yard by a conveyor belt or directly loaded onto trucks. The production line is equipped with a dust collector and wastewater treatment system to achieve clean production.



Equipment: Dust removal and noise reduction devices effectively control dust overflow, meeting environmental standards.



Luoyang Dahua Heavy Industry Science and Technology Co., Ltd. is a direct-sales manufacturer integrating R&D, production, sales, and service. We provide various types of mining crushing equipment, offering high quality and reliability. We optimize and combine different models of equipment, tailoring supporting equipment and construction solutions to meet diverse process requirements. We serve you from equipment selection and site inspection to equipment manufacturing, installation, commissioning, and delivery. Welcome to visit Luoyang Dahua!
