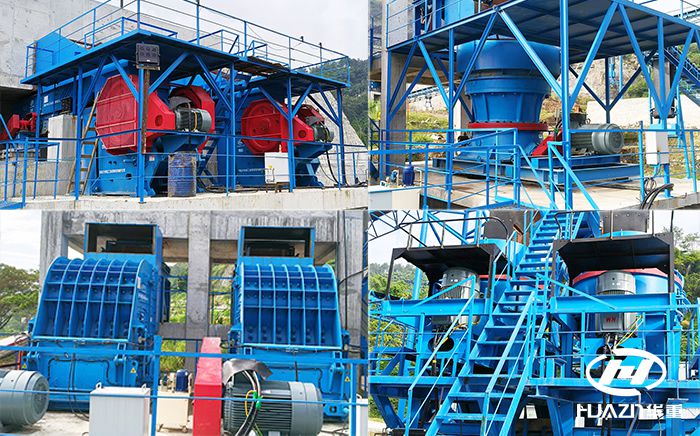

A sand and gravel aggregate production line is a complete set of industrial equipment that processes large rocks, river pebbles, tailings, and other raw materials through a series of processes including crushing, screening, and shaping, into construction sand and gravel aggregates of different particle sizes. It is a core supporting facility for highway, railway, water conservancy, and urban infrastructure projects. In the industry's generally accepted capacity classification standards, a 100tph sand and gravel aggregate production line is considered a typical small-to-medium-sized production line.





Currently, the price of 100tph sand and gravel aggregate production line varies greatly, ranging from tens of thousands to hundreds of thousands of US dollars. The specific price is not a fixed figure and needs to be determined by considering factors such as raw material characteristics, finished aggregate standards, site conditions, and environmental requirements, through targeted equipment selection and process design. A complete 100-ton-per-hour sand and gravel aggregate production line relies on the coordinated operation of several key crushers in its core production stages. Each crusher performs its specific function, working together to complete the entire process of processing high-quality sand and gravel.



1. Primary Crushing: Jaw crushers are used for primary crushing. As the "first stage" of the production line, they are specifically designed to crush large raw materials with a particle size of several hundred millimeters after mining to below 200mm. Their deep-cavity crushing structure allows them to handle large, high-hardness rocks, ensuring stable operation and a low failure rate. They are the standard primary crushing equipment in almost all sand and gravel production lines.



2. Secondary Crushing: The secondary crushing stage can flexibly select between impact crushers and cone crushers depending on the material characteristics. Impact crushers rely on impact to crush materials, producing good particle shape and low needle-like and flaky content, making them more suitable for soft materials such as limestone. Cone crushers, on the other hand, use a layered crushing principle, resulting in longer wear-resistant parts life and a larger crushing ratio. They are specifically suited for high-hardness stones such as granite and basalt, offering greater stability for long-term continuous operation.



3. Fine Crushing: The core equipment for fine crushing is the impact crusher, also known in the industry as a sand making machine. It relies on the "stone-on-stone" and "stone-on-iron" crushing principle to shape and process materials into high-quality manufactured sand with uniform particle size and reasonable gradation (0-5mm). It is the key equipment determining the quality of the finished sand.



4. In addition to the core crushing equipment, a complete production line also requires a complete set of auxiliary equipment: a vibrating feeder responsible for uniform feeding and preventing material blockage; a belt conveyor responsible for material transfer between different equipment; and a circular vibrating screen responsible for particle size classification and screening, returning oversized materials to the crushing stage for recycling. These auxiliary equipment together ensure the continuous and automated operation of the entire production line.



In summary, the investment options for a 100-ton-per-hour sand and gravel aggregate production line are very flexible. Investors only need to choose the appropriate solution based on their raw material properties, finished product uses, and budget range to achieve long-term stable production returns with a well-balanced investment. You can also consult me ​​online, and we will provide you with a production line configuration plan based on your needs to obtain a specific quote.
