Description

HPY Series Multi-cylinder Hydraulic Cone Crusher is one of advanced cone crushers in China, which is developed and manufactured by our company. The machine is one kind of high-class product combined with mechanical technology, electrical technology, hydraulic technology and advanced crushing technology. The machine adopts high strength casting-steel frame, alloy forging main shaft and high precision straight bevel gear driving structure, combined with multi-chambers selection and automation control system, which fulfills the performance and advantages. It can be widely used in secondary and fine crushing work for all kinds of hard materials and rocks to meet customers' various needs for crushing.

Working Principle

When the hydraulic cone crusher works, electric motor drive the belt pulley or the gear shaft to rotate, drive shaft and cone body make the eccentric shaft periodically oscillating and rotating around the center axis. After the material enter into the crushing chamber, they are continuously striking, grinding and squeezing under the interaction of eccentric shaft and concave until the material reach the required granularity, and then discharged from the lower outlet.

Parameter

Model Power
(kw)
CSS(mm) / Throughput Capacity(t/h)
6mm 8mm 10mm 13mm 16mm 19mm 22mm 25mm 32mm 38mm 45mm 51mm
HPY300 220 75-95 100-130 110-140 145-180 170-215 190-230 220-260 225-275 245-320 300-375 345-430
HPY400 315   105-140 135-170 180-225 215-275 250-320 275-345 285-365 315-425 350-480 400-540 455-615
HPY500 400   135-170 170-220 225-290 270-345 310-400 340-425 360-450 400-530 425-585 500-670 560-770
HPY800 630     240-335 315-420 375-500 420-540 465-590 490-725 545-790 585-920 670-990 765-1100

Remark: The capacity above is subject to limestone with density 1.6t/m³ under the condition of open-circuit, which is 15-30% lower than it under the condition of closed-circuit.

Structure

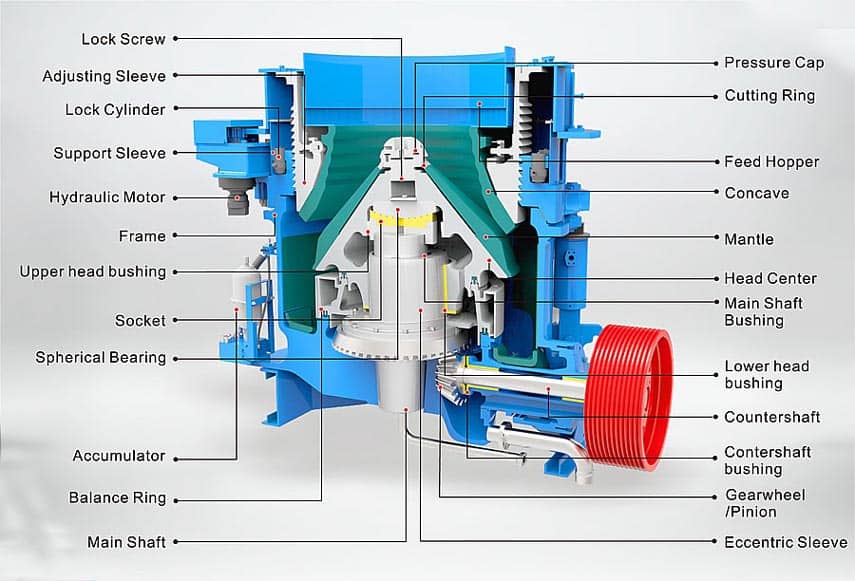

HPY cone crusher

Machine Photo

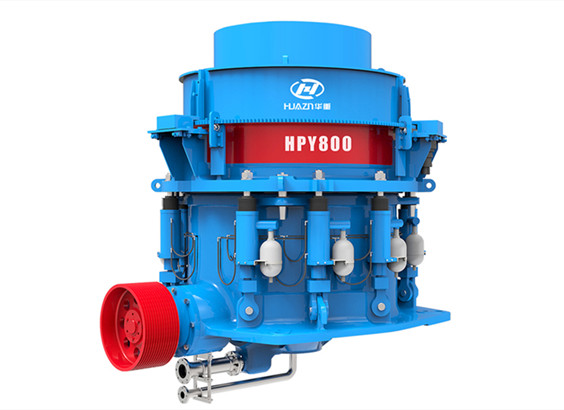

hpy cone crusher 1

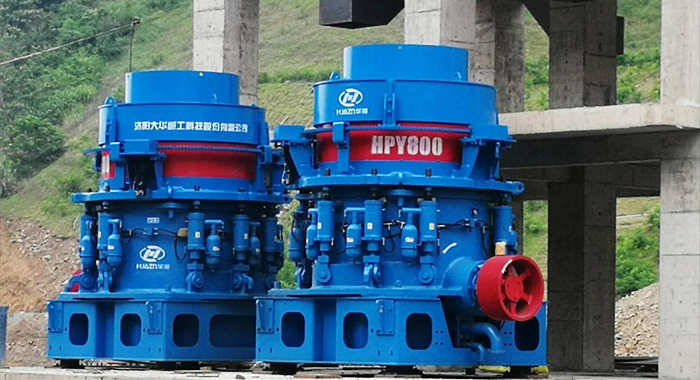

hpy cone crusher 2



Customer Cases

HPY cone crusher application1

Stone and sand aggregates production line at Szechwan, China.

The main equipment: HPY400 cone crusher、YKR3073 vibrating screen、FC1500 spiral classifier and electrical system.

HPY cone crusher application 2

Cobblestone crushing line at Tibet.

The main equipment: ZSW4211 vibrating feeder、ASD3625 jaw crusher、HPY300 cone crusher、3YK1860 vibrating screen、4YK2460 vibrating screen、XL762 sand washer.
