Description

YKR Series Vibrating Screen is designed by our company based on many years practical experience and Chinese national conditions. It is widely used in the screening and classifying application for unconsolidated minerals and rocks in mining, building and building materials industries. The single deck, double decks, triple decks or multiple decks vibrating screens can be supplied and used for dry or wet screening applications according to different customer requests. This series of screens has advantages of smart structure, high screening efficiency and high throughput capacity, which has been proved by production practices.

Features

1. The frequency, amplitude and angle of vibrating screen can be adjusted, which increases screening efficiency.

2. It can use the wire screen or polyurethane screen (tension type and modular type) with different mesh size.

3. The vibration exciter has been designed with block eccentric, external modular and integrated, and can be lubricated by oil lubrication or thin oil automatic lubrication.

4. Flanged side plate, beam and supporting base are connected with high-strength bolts. So that there is no welding stress existed.

5. Elimination of vibration technology is applied to avoid horizontal shaking caused by sympathetic vibration when start or stop the machine.

6. The composite rubber springs are used with features of stable vibration and low noise.

7. It is optional to use the dust-proof sealing device for the vibrating screen according to customers' request.

Parameter

Model Descks Mesh Size
(mm)
Double
Amplitude
(mm)
Vibrating
Frequency
(r/min)
Max. Feed Size
(mm)
Capacity
(t/h)
Power
(kw)
YKR1645 1/2/3 3-150 7-8 970 ≤150 50-350 11/15/22
YKR1845 1/2/3 3-150 7-8 970 ≤200 55-450 22/30/30
YKR1854 1/2/3/4 3-150 7-8 850 ≤200 60-480 22/30/30/45
YKR1860  1/2/3 3-150 7-8 850 ≤200 80-500 22/30/37
YKR2052 1/2/3/4 3-150 7-8 850 ≤200 90-650 15/22/37/45
YKR2160 1/2/3/4 3-150 7-8 850 ≤200 100-750 22/30/37/45
YKR2460 1/2/3 3-150 7-8 850 ≤200 120-880 30/37/45
YKR2475 1/2/3 3-150 7-9 800 ≤200 150-950 37/45/55
YKR2773 1/2/3 3-150 7-9 800 ≤200 150-1000 37/45/55
YKR3060 1/2/3 3-150 7-9 800 ≤200 150-900 37/45/55
YKR3073 1/2/3 3-150 7-9 800 ≤200 150-1100 45/55/2×30
YKR3675 1/2/3 3-150 7-9 800 ≤200 200-1200 2×(22/30/37)

Remark: The capacity is based on the dry production with density 1.6t/m³. It is only for reference, for information in details please contact us.

Machine Photo

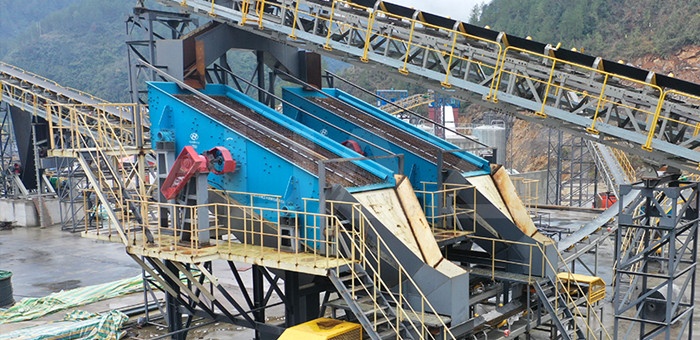

ykr vibrating screen 1

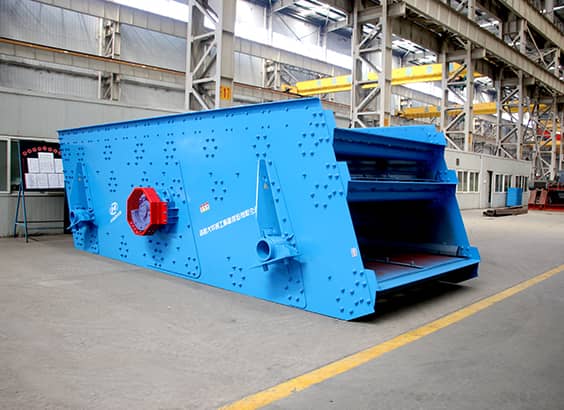

ykr vibrating screen 2

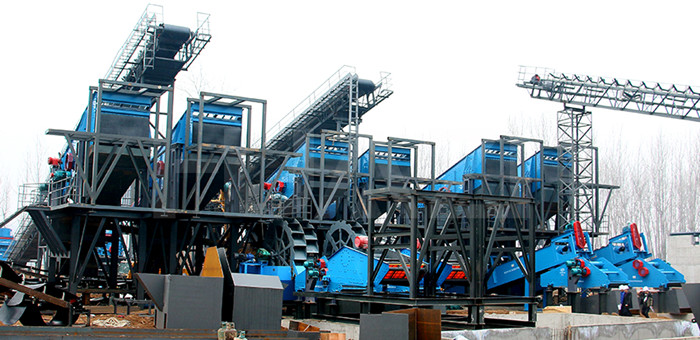

Customer Cases

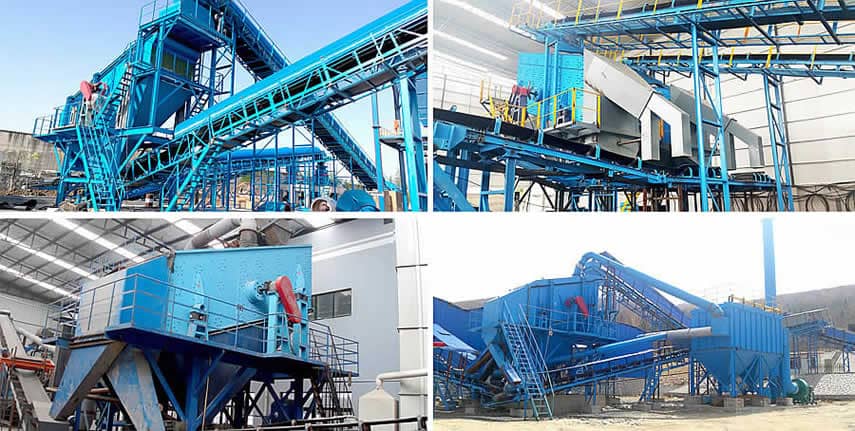

Eccentric Block Circular Vibrating Screen Application
