Limestone, a core raw material for industries such as building materials, metallurgy, and chemicals, directly determines a company's production capacity and market competitiveness through its processing efficiency and quality. To address the needs of large-scale production, our company has tailored a configuration solution for a 3 million-ton-per-year limestone crushing production line. With "high efficiency, energy saving, environmental friendliness, stability, and durability" as its core principles, this solution integrates cutting-edge industry technologies and mature equipment to achieve fully automated operation from raw material crushing, screening, grinding to finished product conveying, helping companies reduce costs, increase efficiency, and seize market opportunities.



This solution is based on a 3 million-ton-per-year limestone production capacity standard, taking into account the characteristics of limestone raw materials (Mohs hardness 3, easily crushed and ground), optimizing the process layout, balancing production efficiency and environmental compliance, and adapting to the large-scale production needs of large mines and building materials companies. It allows for flexible adjustment of finished product specifications to meet various application scenarios in cement, concrete aggregates, power plant desulfurization, and chemical fillers.



I. Core Configuration Principles



1. Capacity Matching: Strictly designed for an annual production capacity of 3 million tons, with a stable hourly output of 800-1000 t/h, and a 10% capacity redundancy reserved to cope with market demand fluctuations and changes in raw material characteristics, ensuring stable production throughout the year;



2. High Efficiency and Energy Saving: Utilizing energy-efficient core equipment and optimizing process connections to reduce energy consumption per unit product. Compared to traditional production lines, electricity consumption is reduced by 15%-20%, with electricity consumption per ton of stone processed controlled below 30 kWh, significantly reducing production costs;



3. Green and Environmentally Friendly: All dust-generating points on the entire production line are uniformly allocated... Equipped with a pulse jet baghouse dust collector, dust emissions are ≤10mg/Nm³, meeting the latest national environmental protection standards. Noise control equipment is also included to achieve clean production.



4. Stable and Durable: Core equipment uses wear-resistant materials and mature technology, resulting in a low failure rate, easy maintenance, and a long service life, ensuring continuous limestone production line operation for over 300 days per year.



5. Flexible Adaptability: The finished product particle size (20-600 mesh) can be adjusted according to customer needs, compatible with various finished product types such as aggregates and powders, adapting to different industry application requirements and enhancing product added value.





II. Complete production line configuration details

This production line adopts a closed-loop process of "coarse crushing → medium and fine crushing → screening → grinding → finished product conveying". Core equipment is selected from high-quality industry models, and auxiliary equipment is fully matched to ensure efficient connection throughout the entire process. The specific configuration is as follows:



(I) Raw material pretreatment and coarse crushing system



1. Vibrating feeder: Model ZSW600×130, feed particle size ≤1000mm, feeding capacity 200-400t/h, uniform feeding, avoiding... 1. Raw material blockage, reducing equipment wear;

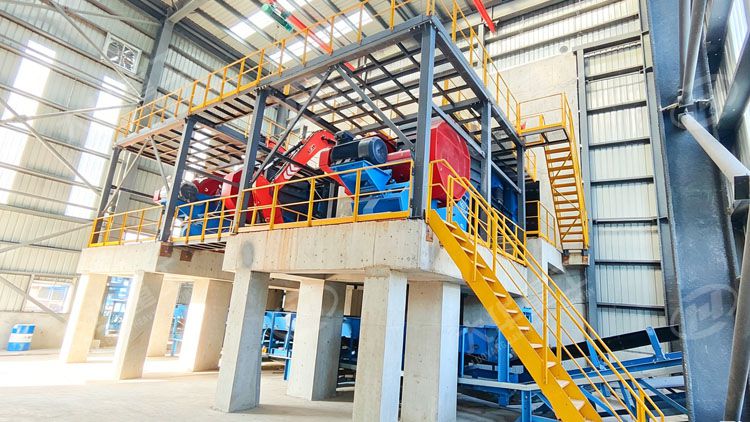

2. Jaw crusher: Model JC160, feed size ≤1000mm, discharge size 100-200mm, crushing capacity 400-600t/h. As the core equipment for coarse crushing, it has a robust structure, high crushing efficiency, and is suitable for crushing large limestone raw materials. It is the "pioneer equipment" of the entire production line;





(II) Medium and fine crushing and screening system

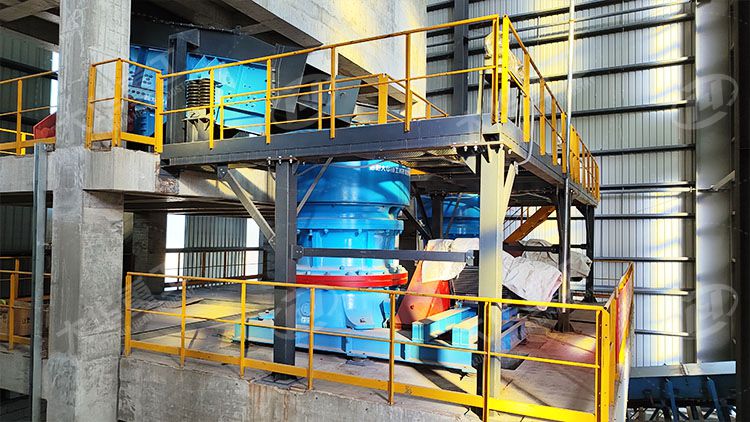

1. Cone crusher: Model HPY500, feed size ≤200mm, 1. **Output Particle Size:** 20-50mm, Crushing Capacity: 300-500t/h. Utilizes the principle of layered crushing, producing uniform particle shape and long service life of wear parts. Suitable for medium and fine crushing operations.





2. **Impact Crusher (Alternative):** Model PFQ1315, feed size ≤300mm, output particle size 10-30mm, crushing capacity 200-350t/h. Produces good particle shape and is suitable for applications requiring high aggregate particle shape.



3. **Circular Vibrating Screen:** Model YK30 72. Screen size 3000×7200mm, screening capacity 400-800t/h, adopts a three-layer screen design, which can screen materials into three specifications (5-10mm, 10-20mm, 20-50mm). Unqualified materials are returned to the secondary and fine crushing equipment for re-crushing, achieving closed-loop production;



4. Soil removal screening machine: Model ZS1860, screen hole diameter 3mm, screening area 11.16㎡, effectively removes soil impurities from raw materials, improving the quality of finished products.



(V) Electrical and Control System



Adopts a PLC fully automatic control system, equipped with a central control room, which can realize the start-up and shutdown, operation monitoring, fault alarm, and parameter adjustment functions of the entire production line equipment, reducing manual operation, lowering labor costs, and ensuring the safe, stable, and efficient operation of the production line; at the same time, it is equipped with emergency power supply equipment to avoid production disruptions caused by sudden power outages.



III. Core Advantages of the Solution



1. Stable Production Capacity: Optimized end-to-end design, core equipment selection adapted to an annual production capacity of 3 million tons, eliminating capacity bottlenecks and ensuring strong continuous operation, guaranteeing on-time order delivery.



2. Controllable Costs: Energy-saving equipment and optimized processes significantly reduce electricity, fuel, and labor costs. Low equipment failure rate and low maintenance costs enhance profitability.



3. Environmental Compliance: A complete set of environmental protection equipment ensures dust and noise emissions meet the latest national standards, helping companies mitigate environmental risks and achieve green and sustainable development.



4. Flexible Adaptability: Equipment configuration and process parameters can be flexibly adjusted according to raw material characteristics and finished product requirements, adapting to multiple application fields and enhancing product market competitiveness.



5. Comprehensive Service: Our company provides one-stop service from solution design, equipment selection, installation and commissioning, personnel training to post-operation and maintenance, providing comprehensive support to ensure rapid production line commissioning and stable operation.



For many years, leveraging over 60 years of industry experience and more than 3,000 sets of crushing and grinding equipment application cases, our company has provided limestone production line solutions with an annual output of 3 million tons or more for numerous large domestic and international enterprises. We have gained widespread customer recognition for our mature technology, high-quality equipment, and attentive service. For customized configuration solutions, please contact our professional team for precise tailoring to your needs, helping your company achieve large-scale, efficient, and green production.
