Multi-machine linkage refers to integrating multiple mobile crushers through an intelligent control system to form an automated crushing production line. A typical configuration includes a multi-stage process of "coarse jaw crusher + medium impact crusher + screening station," with materials seamlessly flowing between equipment via belt conveyors. While a single machine has limited processing capacity, multi-machine collaboration enables continuous operation, avoiding downtime caused by manual intervention. The number of crushing stages can also be flexibly adjusted to suit different material hardness (e.g., soft rock vs. hard rock) and finished product particle size requirements.





I. Configuration Scheme



Multi-machine linkage typically employs a multi-stage process of "coarse crushing → medium crushing → fine crushing → screening." The equipment combination can be flexibly adjusted according to the material type (e.g., granite, construction waste). Here are three main options:



1. Two-Machine Combination (Coarse Crushing + Medium/Fine Crushing)



Equipment Composition: Tracked or wheeled jaw crusher (coarse crushing) + impact crusher (medium/fine crushing).



Applicable Scenarios: For medium-hardness materials (such as limestone, construction waste), when output requirements are low. The jaw crusher handles large raw materials, and the impact crusher further refines the particle size. The structure is simple and the cost is controllable.



2. Three-Machine Combination (Coarse Crushing + Medium/Fine Crushing + Screening)



Equipment Composition: Tracked or wheeled jaw crusher (coarse crushing) + cone crusher (medium/fine crushing) + vibrating screen (grading).



Applicable Scenarios: For high-hardness materials (such as granite, iron ore) or when strict requirements are placed on the finished product particle size. The cone crusher allows for adjustable discharge particle size, and the screening station separates qualified materials, achieving closed-loop production.



3. Multi-Machine Combination (Coarse Crushing + Medium & Fine Crushing + Shaping + Screening)



Equipment Composition: Tracked or wheeled jaw crusher (coarse crushing) + cone crusher (medium & fine crushing) + impact crusher (sand making & shaping) + screening station.



Applicable Scenarios: For producing high-hardness materials (such as granite, iron ore) requiring high-quality sand. The impact crusher combines sand making and shaping functions to further optimize particle shape, while the screening station ensures finished product quality.



II. Recommended Mobile Crusher

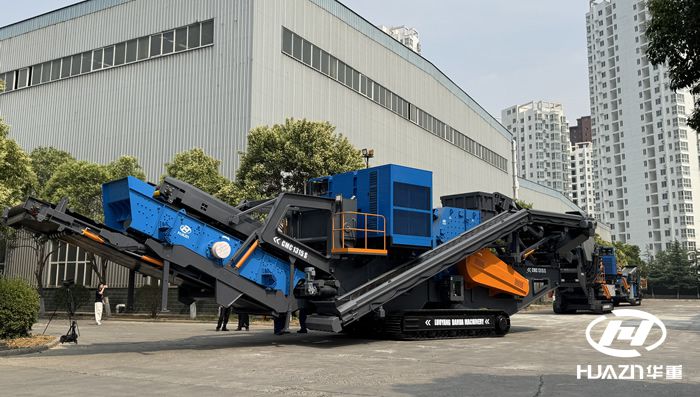

Dahua Heavy Machinery's CMC series tracked mobile crusher is an ideal choice for multi-machine linkage scenarios.



Modular Design: Jaw crusher, impact crusher, cone crusher, and other models can be freely combined to adapt to the entire process from coarse to fine crushing.



Intelligent Control: Standard configuration includes a hydraulic opening and closing mechanism and wireless remote control, allowing operators to precisely control the discharge particle size remotely.



Durability and Environmental Friendliness: Utilizing wear-resistant alloy hammer plates and a heavy-duty rotor structure, its lifespan is significantly extended; the integrated dust removal system meets green production standards.



Scenario Adaptability: It excels in high-frequency relocation operations such as construction waste processing and mining.



Luoyang Dahua Heavy Industry Science and Technology Co., Ltd.is a direct-sales manufacturer integrating R&D, production, sales, and service. We provide various types of mining crushing equipment, offering high quality and reliability. We optimize and combine various models of equipment, tailoring supporting equipment and construction solutions to meet different process requirements. We serve you from equipment selection and site inspection to equipment manufacturing, installation, commissioning, and delivery. Welcome to visit Luoyang Dahua Heavy Machinery for on-site inspection and we will provide you with professional support!
