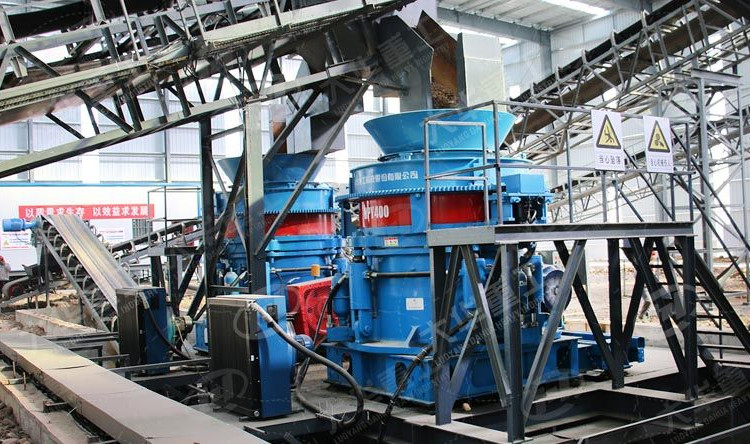

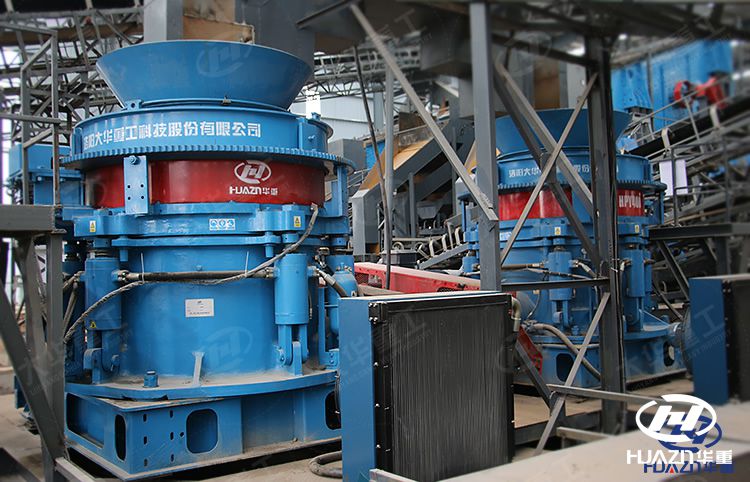

The HPY series multi-cylinder hydraulic cone crusher is a new generation of medium and fine crushing equipment optimized and developed by Luoyang Dahua Heavy Industry based on the working conditions of mining sand and gravel. It integrates mechanical, hydraulic, and electrical intelligent control technologies and is designed for crushing high-hardness materials such as granite, basalt, and iron ore. It is widely used in medium, fine, and ultrafine crushing operations in industries such as mining and metallurgy, sand and gravel aggregates, and building materials and cement.





Core Technical Features



1. Fixed-shaft high-strength structure, ample crushing force



Utilizing a high-strength cast steel frame and alloy forged main shaft, the fixed-shaft structure boasts strong load-bearing capacity. Combined with a large eccentricity and high swing frequency design, it delivers high crushing force output, adapting to long-term heavy-load operation of materials with high Mohs hardness. The equipment exhibits strong overall rigidity and excellent impact resistance. High-precision spur bevel gear transmission ensures smooth transmission and low transmission loss.



2. Laminated Crushing Principle, Excellent Finished Particle Shape



Utilizing a full-cavity feeding laminated crushing system, materials are mutually compressed and ground within the crushing chamber. This results in a high proportion of cubic particles and a low content of needle-like and flaky particles, with a continuous and reasonable gradation. The produced aggregate can directly meet the high-standard aggregate requirements of high-grade highways, high-speed railways, and commercial concrete mixing plants. Multiple chamber types are available: the standard chamber focuses on medium crushing, while the short-head chamber is suitable for fine and ultra-fine crushing conditions.



3. Fully Hydraulic Intelligent Control System, Safe and Easy to Operate



Integrating a hydraulic lubrication system, it features one-button discharge port adjustment, automatic liner wear compensation, overload protection, and automatic chamber clearing. The PLC intelligent system monitors oil temperature, oil pressure, flow rate, motor load, and discharge port size in real time. When an uncrushable iron block enters the chamber, the hydraulic accumulator quickly releases pressure to allow the foreign object to exit, automatically resetting to prevent equipment damage and reduce downtime risks, thus meeting the needs of smart mine construction.



4. Low operating costs and high liner utilization rate



The hydraulic motor drives the adjusting sleeve, ensuring precise discharge port adjustment and uniform liner wear, effectively improving liner utilization efficiency; the copper sleeve's hydrodynamic lubrication design reduces friction loss; wear-resistant materials are used for vulnerable parts, and the reasonable layout of maintenance points significantly shortens cleaning and maintenance time, reducing subsequent operating costs.





Main Application Scenarios



1. Sand and gravel aggregate industry: Crushing of granite, basalt, river pebbles, and limestone to produce high-quality aggregates for infrastructure construction;
