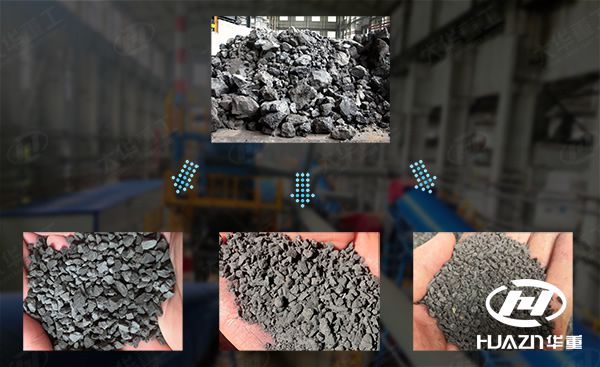

The steel slag recycling process mainly includes crushing, screening, and magnetic separation. Commonly used equipment includes jaw crushers, steel slag rod mills, and magnetic separators. The specific process flow is as follows:



I. Process Flow



1. Crushing and Screening



The steel slag first enters a PEY hydraulic jaw crusher for coarse crushing. The PEY hydraulic jaw crusher is equipped with an overload protection device and can handle large pieces of steel slag up to 300mm, avoiding "steel jamming" malfunctions. The coarsely crushed steel slag then enters a GPY hydraulic cone crusher for secondary crushing. The discharge particle size is controlled by a PLC to achieve fine crushing down to below 50mm, increasing the metal recovery rate by 15%.



After crushing, the slag is sent to a screening device to separate qualified particles (5-100mm) for further processing.



2. Iron Removal and Grinding



A magnetic separator is used to extract iron concentrate with an iron content >90%. Non-magnetic particles enter a gravity separator for further separation.



Grinding is performed using a steel slag rod mill, which separates steel particles, iron powder, and slag through a screen cage.



3. Resource Utilization



Iron powder can be recycled into steel, and steel slag powder (specific surface area ≥450 m²/kg) can be used as an admixture in cement or concrete.



High-value-added products such as mineral wool and ceramic products can be produced through chemical heat recovery technology.



II. Main Equipment



Crushing Equipment: PEY hydraulic jaw crusher, GPY hydraulic cone crusher.



Screening Equipment: High-frequency screen, vibrating screen.



Magnetic Separation Equipment: Magnetic separator, gravity separator.

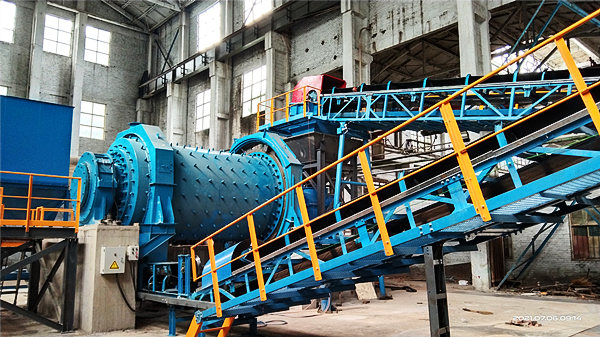

Grinding Equipment: Steel slag rod mill, equipped with a slurry pump for conveying.



Different process routes require different equipment combinations depending on the specific scenario. Luoyang Dahua has established in-depth cooperation with leading enterprises such as Baosteel and Tianjin Steel Plant in the field of steel slag treatment, and its technical strength and project experience have been verified by the industry.
