Ore refers to rocks containing valuable minerals extracted from mines. It can be divided into metallic minerals and non-metallic minerals, such as iron ore, quartz, copper ore, dolomite, and calcite. After progressive processing, it is used in various fields. So, what are the process flows of the ore crushing production line? What is the price? This article provides a detailed introduction.





I. Ore Crushing Production Line Process Flow

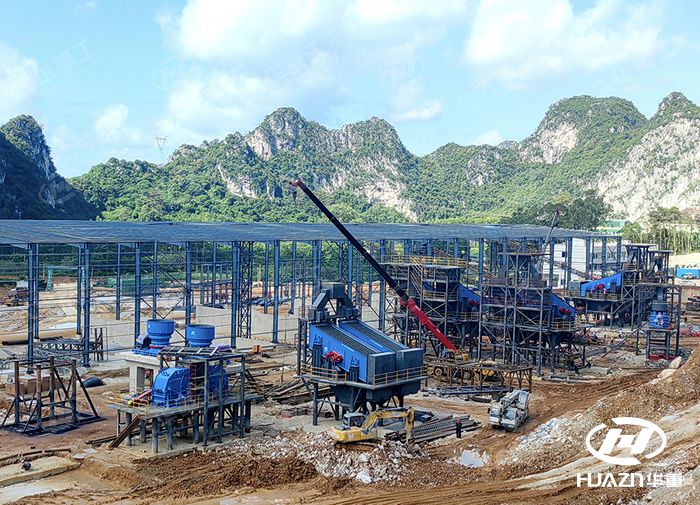

An ore crushing production line is a combination of equipment used to crush large pieces of ore into sizes that meet processing requirements. It typically includes coarse crushing, medium crushing, fine crushing, and screening. The specific process varies depending on the type of ore, output, and particle size requirements. Below is a typical process analysis for your reference.



Ore Crushing Production Line Process Flow:



Vibrating Feeder → Jaw Crusher → Impact Crusher/Cone Crusher → Vibrating Screen → Conveyor;



1. Coarse Crushing Stage



Large pieces of ore undergo preliminary crushing using a jaw crusher, reducing the material particle size to 10-350mm, providing a foundation for subsequent processing.



2. Medium and Fine Crushing Stage



The coarsely crushed material is further crushed to 3-60mm using a cone crusher or impact crusher. Some processes involve vibrating screen separation; materials that do not meet the standards are returned for secondary crushing.



3. Closed-Circuit Screening



The finely crushed material is classified by a vibrating screen. Materials meeting the requirements enter the next process, while materials that do not meet the standard particle size are returned to the crusher, forming a closed-circuit cycle to ensure uniform particle size.



4.Special Process Extensions



Muddy Ore Processing: When the mud content of the raw ore exceeds 5%, a washing process needs to be added to prevent equipment blockage.



Multi-Stage Crushing Configuration: High-hardness ores may use three or four stages of crushing. A three-stage closed-circuit process can control the finished product particle size within the acceptable range.



Automation and Environmental Protection: Modern production lines are equipped with a PLC intelligent control system, supporting water recycling and dust removal systems to reduce energy consumption and pollution.



Raw Material: Iron Ore



Feed Size: ≤500mm



Output Size: 3-5-10-20-30mm



Production Capacity: 100 tons per hour



Equipment Configuration: Vibrating feeder + jaw crusher + cone crusher + vibrating screen + conveyor;



II. How much does the ore crushing production line cost?



Regarding the price of an ore crushing production line, based on the current market situation, it typically ranges from tens of thousands to millions of dollars, with significant differences. This mainly depends on the equipment configuration, output requirements, and selection scheme. Furthermore, choosing a suitable manufacturer is crucial, as different manufacturers have different characteristics in raw material selection, processing technology, and product quality, leading to differences in product performance and price.

For specific pricing information on ore crushing production lines, please feel free to inquire online. Our manager will provide you with the details. Luoyang Dahua Heavy Machinery Factory has cooperated with numerous enterprises for many years, and customer feedback has been generally positive. As a self-producing and self-selling supplier, we enjoy wholesale price advantages. At the same time, our products are of stable and reliable quality. We provide customized configuration solutions and support installation, commissioning services, as well as after-sales support such as maintenance and regular upkeep, allowing customers to purchase with greater peace of mind and use with greater peace of mind.
