Description

The product has the characteristics of high capacity, jaw plate wear resistance, high degree of humanized operation, good stability, simple structure and appearance which is the first choice for crushing processing with compressive strength less than 300 mpa.


Features

asj-e jaw crusher structure

1.“V” type of crushing chamber, effective opening size is equal to the nominal opening size (common jaw crusher adopts the traditional asymmetric crushing chamber structure, and effective opening size is smaller than nominal opening size)and the throughput capacity will be increased by15-20% compared with the normal crushing chamber.

2.The discharge opening applies the hydraulic adjusting unit, the optimized chamber and motion parameter make the product have greater through capacity for same clearance.

3.Smaller discharge clearance for same through capacity. The main components of frame adopt high- quality manganese steel, thickening steel plate, and finite element analysis method is used to evaluate mechanical strength in the process of design to improve the load resistance and impact during using. Cold installation process for bearing and thin oil lubrication make service life prolonged and efficiency of the rotation improved.

4.Four humanized maintenance operation units adopted for easily damaged parts of ASJ - E: bolt fastening and spring removal unit, moving jaw maintenance unit, side guard plate removal unit, adjusting seat replacement unit, so maintenance personnel can easily have inspection, maintenance and care with the four units.



Working Principle

The electric motor drives V-belt to make the swing jaw up and down through eccentric shaft. When the swing jaw goes up, the angle between toggle plate and swing jaw gets bigger, and the materials can be crushed. When the swing jaw goes down, the angle between toggle plate and swing jaw becomes smaller, the swing jaw moves away from the fixed jaw plate, and then the crushed materials will be discharged from the lower outlet of the crushing chamber.

Parameter

Model
ASD
36-25
ASJ-E
42-30
ASJ-E
48-36
ASJ-E
54-42
ASJ-E
60-48
Max. Feed Size(mm)
500
610
730
860
1000
Feed Opening Size(mm)
910×630
1070×760
1220×910
1370×1070
1520×1220
Css Discharge Opening/Capacity(t/h)
50
125




75
160
215
280


100
195
260
330
395

125
225
305
385
470
530
150
255
345
440
535
620
180
290
390
495
615
720
200

420
535
670
785
220


570
720
850
250




950
Power(kw)
90
110
160
180
220

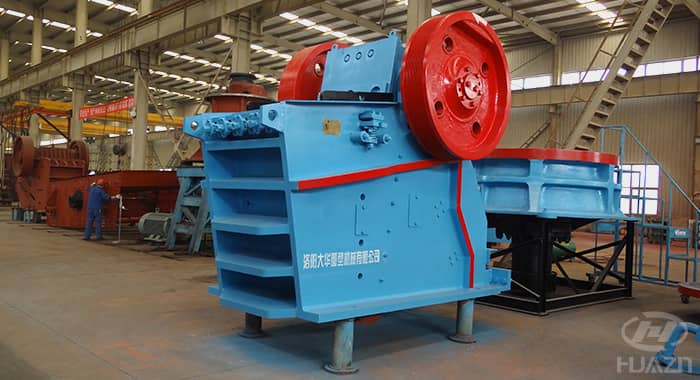

Machine Photo

asj-e jaw crusher 2

asj-e jaw crusher 1



Customer Cases

ASJ-E jaw crusher application

It is designed for granite crushing in Cameroon. The production capacity is 100-150t/h.

The main equipment: ZSW vibrating feeder, ASJ-E jaw crusher, GPY cone crusher, PLS vertical impact crusher, and YKR vibrating screen.

ASJ-E jaw crusher application 2

The production line is for granite crushing in Kenya, second purchase by the customer.

The main equipment: ZSW vibrating feeder, ASJ-E jaw crusher, PLS vertical impact crusher, and vibrating screen.
