Description

FC and FG Series Spiral Classifier is mainly used in pre-classification and examination classification of grinding circuit in concentration plant and aggregate plant as well as desliming and dehydration in the process of sand washing. It can be classified into single spiral and double spiral according to the spiral quantity; and high weir type and sinking type according to the different depth of blade dipping into overflow surface. The former one can be used in classification of ore and sand washer with overflow granularity 0.83-0.15mm, and the other one in classification of ore and fine powder with overflow granularity 0.15-0.07mm. The machine has features of reliable performance, stable operation, excellent sand washing and classifying. The machine is used to control the loss amount of powder for sand washing in the aggregate system.

Features

1. This classifier adopts sealing immersed bearing.

2.  Independent hoisting equipment with strong reshipment power

3.  Wearable liner of bolt installed to prolong the service life.

4.  Cell body in long and narrow shape can reach a good mixing effect and prolong the suspension time of materials.

5. Single spiral and double spiral type can be selected in line with your actual need.

Working Principle

Spiral classifier adopts the principle that the settling rate of solid grain is different because of its different size and different proportion. The fine ore grains float in the water and drain out with overflow, the coarse ore grains sink in the bottom of chute. The spiral classifier filters the grain and powder that are grinded from the grinder, and then the spiral pieces rotate the coarse materials into the feeding mouth of grinder, the filtered fine materials are discharged from the overflow pipe.

Parameter

Style

Model

Spiral Dia.(mm)

Flume Length(mm)

Speed(r/min)

Capacity(t/d)



Flume gradient

(°)

Power(kw)

Dimension(mm)

Return sand

Overflow

Drive motor

Winding motor

High weir spiral classifier

FG500

φ500

4500

8-12.5

135-210

32

18

1.5



6409×712×1599

FG750

φ750

5500

6.0-10.0

340- 570

65

14-18.5

3.0



7100×990×1450

FG-1000

φ1000

6500

5.0-8.0

650-1080

110

14-18.5

7.5



8084×1424×2503

FG-1200

φ1200

6500

5.0-8.0

1170-1870

155

14-18.5

7.5

0.4

8195×1574×2747

FG-1500

φ1500

8300

4.0-6.0

1830-2740

235

14-18.5

11

0.4

9818×1976×3703

FG-2000

φ2000

8400

3.0-3.5

3240-5400

400

14-18.5

11

2.8

10200×2530×4486

FG-2400

φ2400

9200

2.5-4.0

4650-7450

580

14-18.5

11-15

2.8

11000×2930×5690

2FG-1200

φ1200

6500

5.0-8.0

2340-3740

310

14-18.5

5.5×2

0.4×2

8686×2802×3101

2FG-1500

φ1500

8300

4.0-6.0

4650-7450

470

14-18.5

7.5×2

0.4×2

9818×3506×3703

2FG-2000

φ2000

8400

3.0-5.5

2340-3740

800

14-18.5

44×2

2.8×2

10200×4610×4486

2FG-2400

φ2400

9200

2.5-4.0

3660-5480

1160

14-18.5

15×2

2.8×2

11000×5430×5690

2FG-3000

φ3000

12500

2.5-4.0

6480-10800

1785

14-18.5

18.5×2

4×2

14500×6630×6350



Sinking

type

 spiral classifiers

FC-1000

φ1000

7600

5.0-8.0

9300-14900

85

14-18.5

7.5

0.4

9190×1506×3101

FC-1200

φ1200

8400

5.0-8.0

14600-23400

120

14-18.5

7.5

0.4

9384×1846×3277

FC-1500

φ1500

10500

4.0-6.0

675-1080

185

14-18.5

11

0.8

12068×1976×4305

FC-2000

φ2000

12900

3.0-3.5

1170-1870

320

14-18.5

11-15

2.8

14700×2530×5343

FC-2400

φ2400

14200

2.5-4.0

1830-2740

455

14-18.5

11-18.5

4.0

13000×2930×6885

2FC-1200

φ1200

8400

5.0-8.0

2340-5940

240

14-18.5

7.5×2

0.4×2

10000×3700×4190

2FC-1500

φ1500

10500

4.0-6.0

3660-5480

370

14-18.5

7.5×2

0.8×2

10588×3506×4035

2FC-2000

φ2000

12900

3.0-5.5

6480-11800

640

14-18.5

15×2

2.8×2

14700×4610×5343

2FC-2400

φ2400

14200

2.5-4.0

9300-14900

910

14-18.5

18.5×2

4×2

13000×5430×6885

2FC-3000

φ3000

14300

2.0-3.2

14600-23400

1410

14-18.5

22×2

4×2

16200×6630×8680

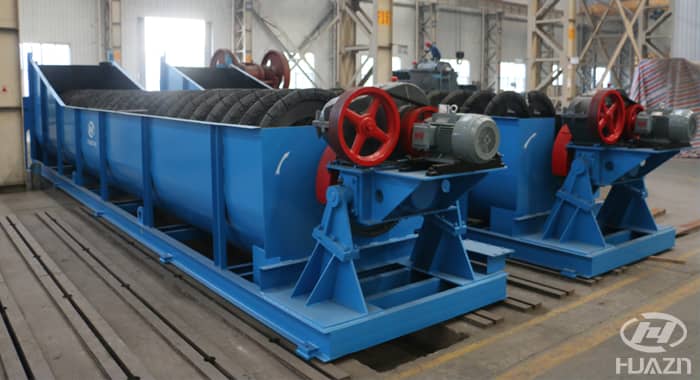

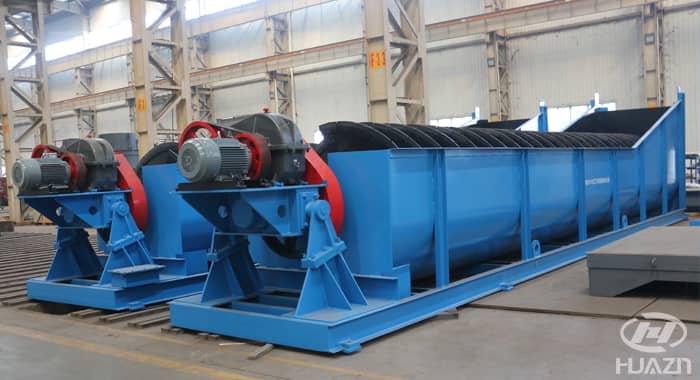

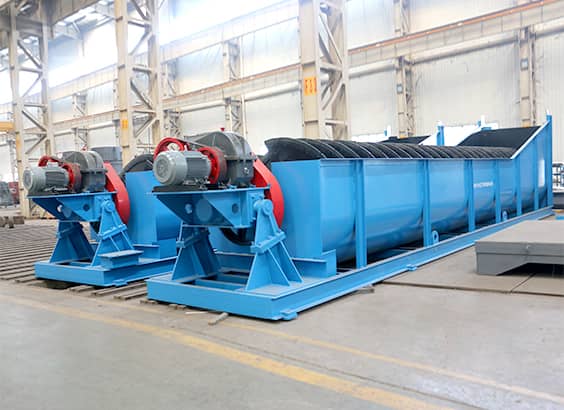

Machine Photo

spiral classifier

Customer Cases

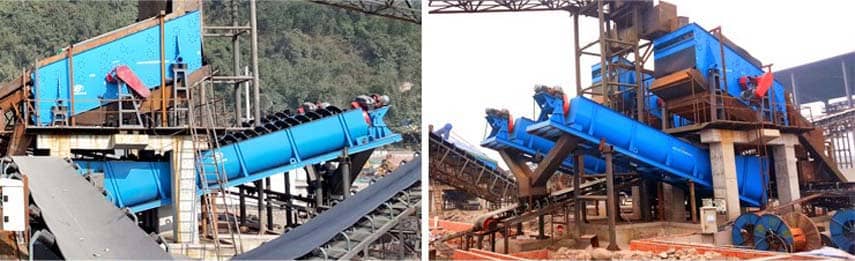

Spiral Classifier Application
