Iron ore, as a core raw material for the steel industry, directly determines the core competitiveness of mining enterprises through its crushing efficiency, particle size quality, and operating costs. With the accelerated construction of "smart mines" and upgraded requirements for energy conservation and emission reduction, the shortcomings of traditional crushing equipment in handling high-hardness iron ore, ensuring continuous operation, and optimizing finished product particle shape are becoming increasingly apparent. Dahua Heavy Industry's HPY hydraulic multi-cylinder cone crusher, with its innovative multi-cylinder hydraulic structure, technological breakthroughs in intelligent control, and precise optimization to adapt to iron ore working conditions, has become the preferred equipment for the fine crushing stage in modern iron ore production lines. It completely solves industry pain points such as low crushing efficiency, high maintenance costs, and uneven finished product quality for high-hardness materials, injecting strong momentum into the large-scale and lean production of iron ore.



In practical applications, the over-iron protection function of the HPY hydraulic hydraulic multi-cylinder cone crusher is particularly noteworthy. When an uncrushable object accidentally enters the crushing chamber, the equipment's hydraulic system automatically depressurizes to allow it to pass, and quickly resets after the foreign object is discharged. This avoids component damage and downtime losses caused by material jamming in traditional equipment, greatly reducing the equipment failure rate. Meanwhile, its optimized crushing chamber design, combined with the principle of layered crushing, allows the iron ore to undergo multi-directional compression and grinding within the crushing chamber. The finished product contains over 80% cubic particles and less than 10% needle-like or flaky particles, resulting in uniform and regular particle shape. This effectively improves the efficiency of subsequent grinding processes, reduces mill energy consumption, and further optimizes ore beneficiation recovery rates.

1. Core Technology Empowers High Efficiency and Energy Saving Advantages



The superior performance of the Dahua HPY multi-cylinder cone crusher is inseparable from the continuous iteration and optimization of its core technologies. Its high efficiency, energy saving, and intelligent characteristics in iron ore applications have become key supports for cost reduction and efficiency improvement for mining enterprises.



High efficiency and high output are among its core competitive advantages. This series of equipment covers the entire HPY100 to HPY1000 series, with processing capacities ranging from 20t/h to 3000t/h, precisely adaptable to the needs of iron ore production lines of different scales. The HPY800 model boasts a maximum processing capacity of 1100 t/h and a motor power of up to 630 kW. In a production line application at an iron ore mine in Nanyang, Henan Province, the single-unit processing capacity increased by 35% year-on-year. Combined with a three-stage crushing configuration of a jaw crusher for coarse crushing and a single-cylinder cone crusher for medium crushing, it achieves an astonishing annual processing capacity of 20 million tons, fully meeting the needs of large-scale iron ore production.



Its energy-saving, consumption-reducing, and environmentally friendly features align with the modern concept of green development in mining. Compared to traditional crushing equipment, the HPY multi-cylinder cone crusher reduces power consumption per unit output by approximately 18% through optimized hydraulic systems and transmission structures, significantly reducing energy consumption. Simultaneously, the equipment employs a centralized lubrication system and a labyrinth seal structure to effectively prevent dust intrusion. Combined with dust removal equipment, it further reduces dust and noise emissions during the crushing process, meeting environmental protection production requirements and contributing to green and low-carbon mine operations.



Intelligent operation and convenient maintenance further reduce mine operating costs. The equipment integrates a PLC intelligent control system, enabling remote monitoring, one-button adjustment of the discharge port, and automatic compensation for liner wear. Operators can monitor key parameters such as spindle position, lubricating oil temperature, and hydraulic pressure in real time, reducing manual intervention and lowering labor costs. Its key components utilize high-strength, wear-resistant materials such as high-manganese steel, processed with special heat treatment techniques. When crushing high-hardness iron ore, the service life of the crusher wall and jaw wall can reach over 3000 hours. Furthermore, the automatic cavity clearing system can shorten equipment maintenance time by more than 60%. Through standardized preventative maintenance, annual downtime can be controlled to within 48 hours, significantly reducing operating costs and downtime losses.



2. Practical Application, Empowering Iron Mine Efficiency Upgrades

From small and medium-sized iron mine upgrades to large-scale iron mine production line construction, the Dahua HPY multi-cylinder hydraulic hydraulic cone crusher, with its flexible adaptability and stable performance, has been implemented in numerous iron mine projects nationwide, cumulatively creating significant economic and social benefits for enterprises.



In a vanadium-titanium magnetite mine project in North China, the mine previously used traditional spring cone crushers, which suffered from insufficient capacity, poor finished product particle shape, and frequent maintenance, resulting in high energy consumption and low beneficiation efficiency in the grinding process. After introducing the Dahua HPY800 multi-cylinder cone crusher, the equipment's processing capacity reached 310-1200 t/h, an increase of over 30% compared to traditional equipment. The output of needle-like and flaky materials decreased by 20%-30%, and unit power consumption decreased by 15%-30%. Simultaneously, the equipment's intelligent monitoring and fault early warning functions effectively reduced downtime, increasing the continuous operation time of the production line from 16 hours to 22 hours. Overall operating costs decreased by over 25%, and the beneficiation recovery rate increased by 3%-5%, completely reversing the previous situation of low production efficiency.

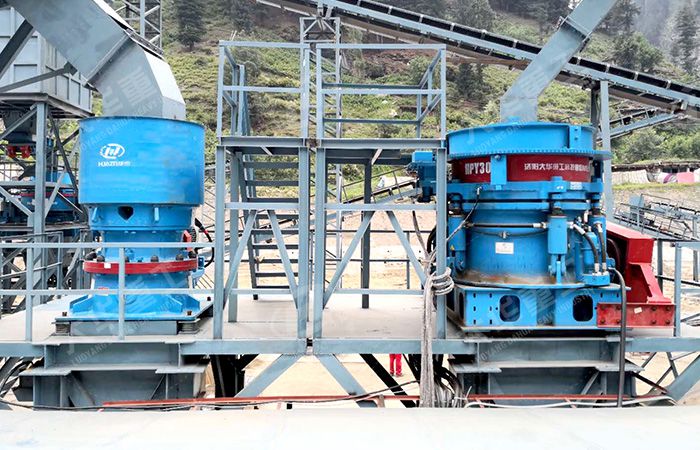

In a three-stage crushing production line at an iron ore mine in Nanyang, Henan Province, the HPY hydraulic multi-cylinder cone crusher serves as the core equipment in the fine crushing stage. Working in conjunction with jaw crushers and single-cylinder cone crushers, it forms a closed-loop crushing system of "coarse crushing-medium crushing-fine crushing." This configuration not only achieves the annual processing capacity target of 20 million tons but also precisely controls the finished ore particle size to 10-25mm, with a stable cubic particle ratio of around 85%. This significantly reduces the load on subsequent grinding processes, decreasing mill energy consumption by 18% and saving the company over one million yuan in energy costs annually. It also reduces the frequency of wear part replacements, further compressing maintenance costs.



For technological upgrading projects in small and medium-sized iron ore mines, the compact structure and flexible adaptability of the HPY multi-cylinder cone crusher also play a crucial role. Some small and medium-sized iron ore mines previously used outdated crushing equipment, which suffered from high energy consumption, high failure rates, and poor product quality. After introducing medium-sized models such as the HPY300 and HPY400, they achieved the dual goals of increased capacity and reduced costs without large-scale modifications to their existing production lines. One small and medium-sized iron ore mine, after its technological upgrade, saw a 30% increase in the throughput of a single unit, a 16% reduction in operating costs per ton of ore, and a more than 45% improvement in the finished product particle shape qualification rate. This successful low-cost, high-efficiency upgrade enhanced the company's competitiveness in the market.
