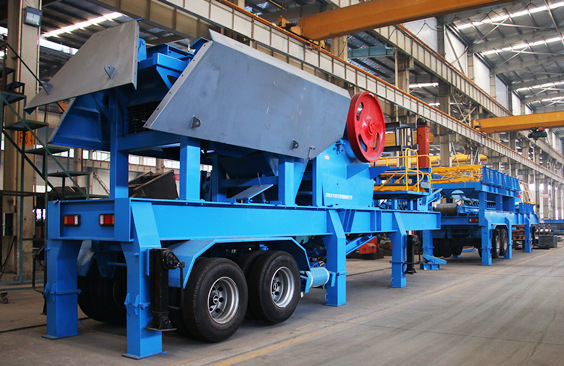

A small mobile jaw crusher generally refers to a mobile jaw crusher with an hourly output of less than 100t. Generally, a mobile jaw crusher with an hourly output of less than 50t only needs one cart, equipped with a vibrating feeder, a jaw crusher, and a vibrating screen;For those above 50t and below 100 tons, two trucks are required, one equipped with a vibrating feeder and a jaw crusher, the other equipped with cone crusher or impact crusher according to the hardness of the material, plus a vibrating screen.

There are many series of jaw crushers. Among them, the DHKS series meets the requirements of small size. Basically, the jaw crushers configured in the mobile production line with small output are all of the DHKS series. There are many models of the DHKS series, and not every model is in line with the hourly production. For the requirements below 100t, there are mainly the following models that meet the requirements:

DHKS-400×600, the maximum feed size is 340mm, the discharge size is between 40-100mm, the hourly output is about 16-64t, the eccentric shaft speed is 275r/min, and the total body weight is 7t;

DHKS-500×750, the maximum feed size is 425mm, the discharge size is between 50-100mm, the hourly output is about 40-110t, the eccentric shaft speed is 275r/min, and the total body weight is 7t;

DHKS-600×900, the maximum feed size is 500mm, the discharge size is between 65-160mm, the hourly output is about 50-160t, the eccentric shaft speed is 250r/min, and the total body weight is 17t;

DHKS-300×1300, the maximum feed size is 250mm, the discharge size is between 20-90mm, the hourly output is about 16-105t, the eccentric shaft speed is 300r/min, and the total body weight is 15.6t.

Our company specializes in integrated services such as equipment and installation and construction of fixed and mobile crushing plant projects. We can design a reasonable and profitable crushing production line for you.
