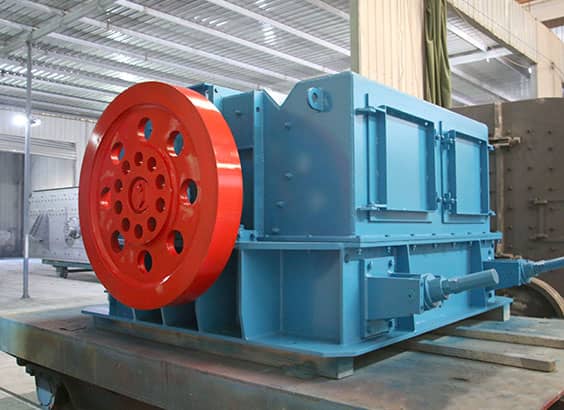

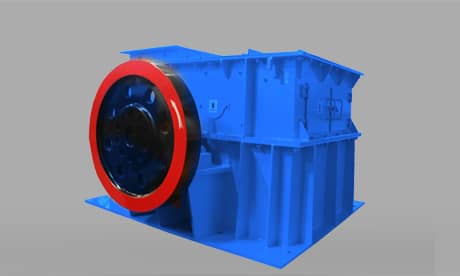

PCH Series Ring Hammer Crusher is a new type of crushers self-developed by our company, absorbing the advantages of hammer crusher and impact crusher. Scientifically rational sructure design ensures reliable running, low consumption of  wearing parts and operation cost. This series can be used not only in crushing or sand production line but also in beneficiation production line where it can replace the role of cone crushers.


1. Hammerhead is rationally designed and forged by advanced technics,by which it has great impact force and long service life.
2. Large feed opening anf high crushing cavity. Suitable for materials with high hardness, in large block and less rock flour in finished product.
3. The distance between gird sections, discharge size all can be altered at user will.
4. Scientifically rational sructure design ensures reliable running, low consumption of wearing parts.
5. Well combinating different types of force together for a integratedle efficient production, especially for artificial sand making


Model Feed Size(mm) Discharge Size(mm) Capacity(t/h) Power(kw) Dimension(mm) Weight(kg)
PCH0808 200 <15 18-37 45 1750×1620×1080 5030
PCH1010 300 <15 50-100 90-110 2100×2000×1340 7200
PCH1016 300 <30 250-300 155-220 2700×2000×1350 12000
PCH1212 300 <30 260-320 132-280 3100×2400×1750 13600
PCH1216 350 <30 380-500 220-355 3100×2800×1750 19100
PCH1221 400 <30 500-625 450 3620×3350×1950 24500
