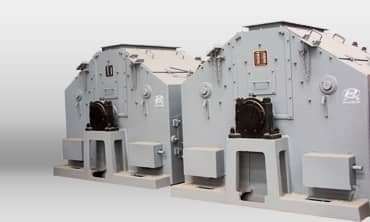

PCK Series Reversible Hammer Crusher is a new type of crushers self-developed by our company. It generally composes of main frame, electric motor, torque-limiting fluid coupling, fluid staring device.


1. The principle axis and hammer handle are forged in superior alloy steel, and the hammerhead and lining made in high anti-abrasion alloy.

2. As for its unique design philosophy, it adopts greater rotor, short hinge pin and reversible hammer to enhance the strike force and lower th running costs.


Model Feed Size(mm) Discharge Size(mm) Capacity(m³/h) Power(kw) Dimension(mm) Weight(kg)
PCK1000×1000 <40/80 <3 83-125 280 4200×2500×1800 11500
PCK1250×1250 <40/80 <3 125-160 320 4560×2684×2057 19100
PCK1430×1300 <40/80 <3 160-320 380-550 4737×3180×22780 21680
PCK1680×1800 <80 <3 360 630   39000
