Roll Crusher
Tel.: +86-379-62669977/78/58E-Mail: [email protected]
Description
Working Principle
There is a wedge-shaped device or gasket adjustment device between the two rolls and on the top of the wedge-shaped device placed an adjusting bolt. When the adjusting bolt pulls up the wedge, the wedge will move the movable roll from the fixed roll, so the gap between the two rolls become large, and the discharging granularity will get big. When the wedge goes down, under the effect of pressure spring, the gap between them become small and the discharging granularity will get small. The gasket device adjusts the granularity of discharging material by increasing or decreasing the number or thickness of the gasket. When the gasket number increases, the gap between the two rolls become large and the discharging granularity will get big. When the gasket number decreases, the gap between the two rolls become small and the discharging granularity will get small.
Parameter
Type
|
Specification
|
Feed Size(mm)
|
Discharge Size(mm)
|
Capacity(m3/h)
|
Power
(kw)
|
Outline Dimension
(mm)
|
StrongDouble-roller crusher
|
2PGQ 610×400
|
<36
|
2-9
|
3-9
|
15×2
|
2085×3090×802
|
2PGQ 750×500
|
<40
|
2-10
|
3-16
|
18.5×2
|
2344×1900×1605
|
|
2PGQ 750×700
|
<40
|
2-10
|
5-25
|
22×2
|
2344×2318×1605
|
|
2PGQ 900×500
|
<40
|
2-10
|
5-26
|
22×2
|
2750×1956×1662
|
|
2PGQ 900×900
|
<40
|
2-10
|
11-45
|
~37×2
|
2750×2356×1662
|
|
2PGQ 900×1200
|
<40
|
3-10
|
15-60
|
~55×2
|
2750×2480×2065
|
|
2PGY 1200×1000
|
<40
|
3-12
|
15-60
|
~45×2
|
3476×2894×2200
|
|
2PGY 1200×1200
|
<40
|
2-12
|
18-68
|
~75×2
|
3476×3117×2200
|
|
Four-roller crusher
|
4PG750×500
|
<30
|
2-4
|
3-10
|
18.5+11/17
|
2760×2105×2650
|
4PG900×700
|
40-100
|
2-10
|
11-18
|
30+15/24
|
3150×2450×2747
|
|
4PG900×900
|
40-100
|
2-10
|
14-24
|
45+24/37
|
3160×2650×2747
|
|
4PGY1200×1000
|
20-40
|
3-10
|
43-68
|
90+40/55
|
4138×3300×3650
|
|
Double teeth roller crusher
|
2PGC450×500
|
100-200
|
25-100
|
20-55
|
<11
|
2360×2206×916
|
2PGC600×750
|
300-600
|
50-125
|
60-125
|
22
|
2635×2850×1025
|
|
2PGC900×900
|
<800
|
75-150
|
100-180
|
30
|
3710×2300×1394
|
|
2PGC1000×800
|
150-400
|
5-150
|
30-150
|
55
|
3480×2300×1360
|
|
2PGC1200×1500
|
<200
|
<40
|
100-160
|
2×55
|
3370×3500×1945
|
|
2PGC1200×1500
|
<150
|
<20
|
450-600
|
2×250
|
5890×4220×2370
|

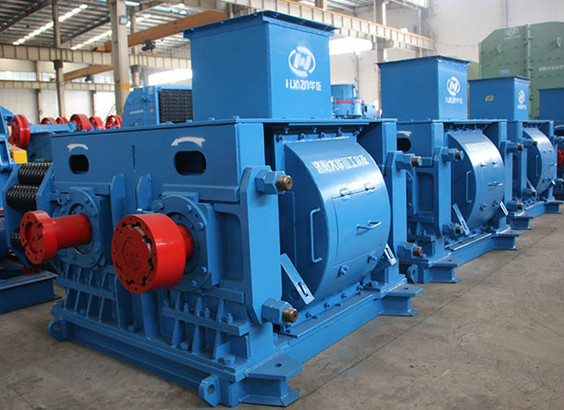

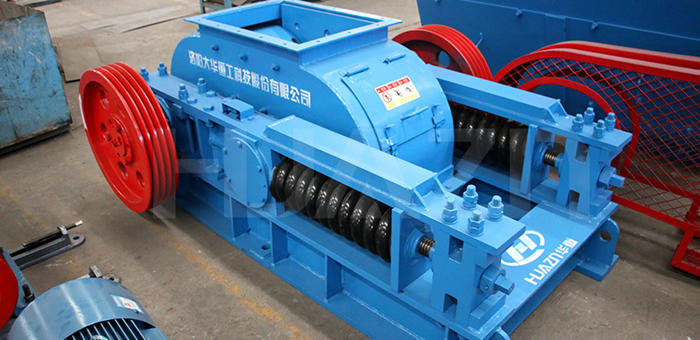

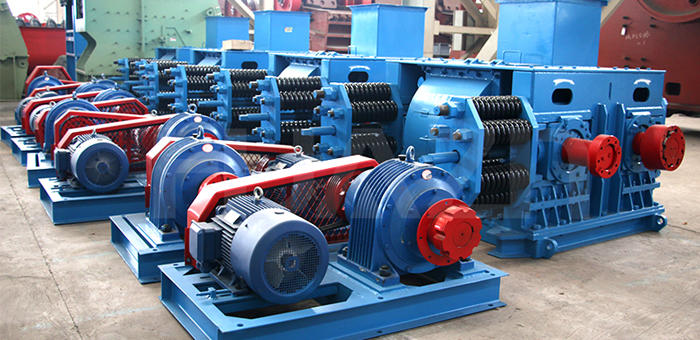

Machine Photo
