GZD Series Vibrating Feeder
Max. Feed Size: 400-600 (mm)
Processing Capacity: 120-200 (t/h)
Overall Dimension: 2996 x 1750 x 1651 - 4347 x 2150 x 2182
Application Fields: construction, metallurgy, coal mine, chemical industry.
Description
GZD Series Vibrating Feeders are mainly used to continuously and evenly feed large-block materials to primary crusher, meanwhile having the function of pre-screening the materials.
Features
1. The vibrating motor working as the vibration source ensures the great impact of large-block materials and greatly lifts the feeding capacity.
2. Simple structure, even vibration and feeding, good continuity and easy maintenance.
3. It realizes the purpose of pre-screening through clearing the mud and fine materials by the rods or sieve plate while feeding.
4. Low noise and energy consumption, easy maintenance.
Parameter
|
Model
|
Max. Feed Size
(mm)
|
Rotating Speed
(r/min)
|
Throughput
(t/h)
|
Power
(kW)
|
Dimension
(mm)
|
|
GZD95×300
|
400
|
980
|
～120
|
3.7×2
|
2996×1750×1651
|
|
GZD100×300
|
400
|
980
|
～150
|
5.5×2
|
2996×1800×1751
|
|
GZD100×360
|
500
|
980
|
～150
|
5.5×2
|
3745×1950×1919
|
|
GZD120×360
|
500
|
740
|
～180
|
6.5×2
|
3745×2150×2101
|
|
GZD120×420
|
600
|
740
|
～200
|
6.5×2
|
4347×2150×2182
|

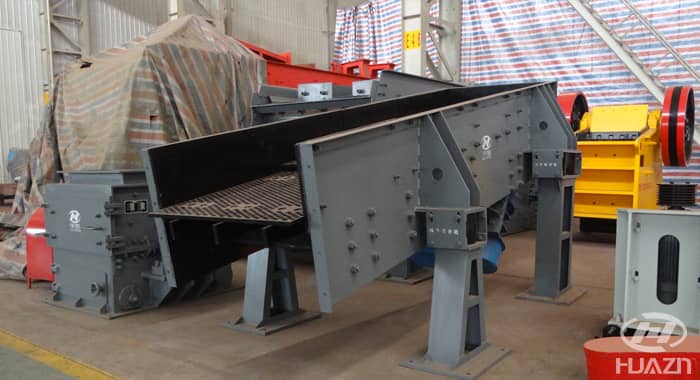

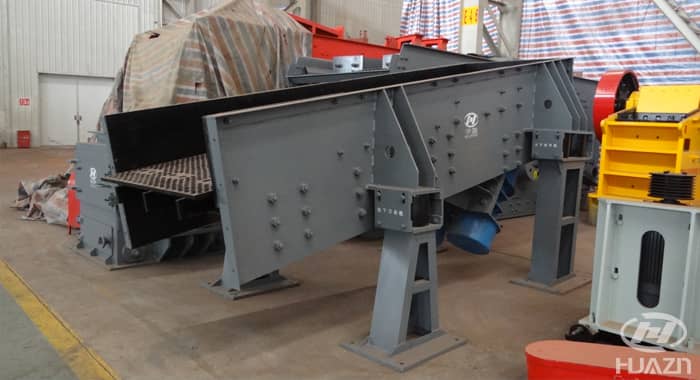

Machine Photo
