Description

Mainly for crushing hard rock, ISP Series Impact Crusher is a new designed and developed machine with high efficiency.  It is mainly used in secondary, tertiary and fine crushing. It also has certain function of shaping the products and making sand. It is widely used to process sand and aggregate in the field of construction for water and electricity, highway, city construction.

Features

1. There are two different adjustable crushing cavities which increases the efficiency.

2. The anti-wear alloy hammer and impact plate increase the utilization and reduce the cost.

3. There are special symmetric check-doors at both sides of the frame, which are convenient to change the hammer and impact plate.

4. The discharge opening is adjustable. The final product size can be controlled. The shape of the product shows like a cube type.

5. Smart structure ,easy to maintain, energy-saving.

Parameter

Specification

ISP1005

ISP1008

ISP1010

Compression Strength(<150MPa)

Medium Crushing

Max. Feed Size(mm)

150

200

200

Discharge Size(mm)

40

40

40

Fine Crushing

Max. Feed Size(mm)

80

120

120

Discharge Size(mm)

25

25

25

Compression Strength(>250MPa)

Medium Crushing

Max. Feed Size(mm)

120

150

150

Discharge Size(mm)

40

40

40

Fine Crushing

Max. Feed Size(mm)

60

80

80

Discharge Size(mm)

25

25

25

Capacity(t/h)

~50

~70

~100

Power(kw)

55

75

90

Dimension(mm)

2610×1780×2125

2610×1910×2125

2610×2275×2125



Specification

ISP1310

ISP1313

ISP1513

ISP1515

Compression

Strength

(<150MPa)

Medium Crushing

Max. Feed

Size(mm)

300

300

400

400

Discharge

Size(mm)

40

40

40

40

Fine Crushing

Max. Feed

Size(mm)

150

150

200

200

Discharge

Size(mm)

25

25

25

25

Compression

Strength

(>250MPa)

Medium Crushing

Max. Feed

Size(mm)

150

150

200

200

Discharge

Size(mm)

40

40

40

40

Fine Crushing

Max. Feed

Size(mm)

100

100

140

140

Discharge

Size(mm)

25

25

25

25

Capacity(t/h)

~150

~180

~200

~230

Power(kw)

132

160

185

220

Dimension(mm)

3140×2080×2715

3140×2330×2715

3235×2400×2795

3235×2680×2795

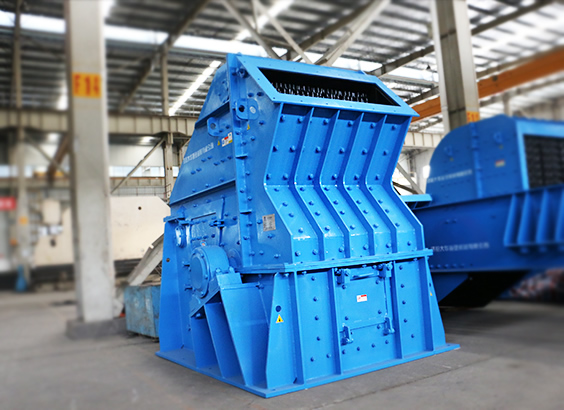

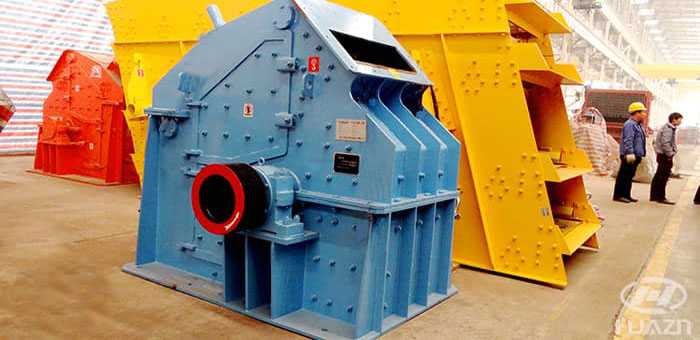

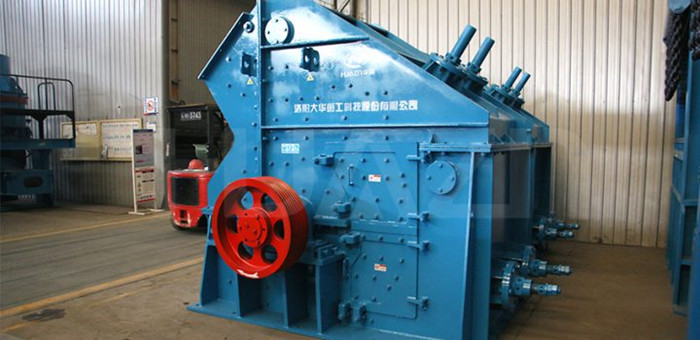

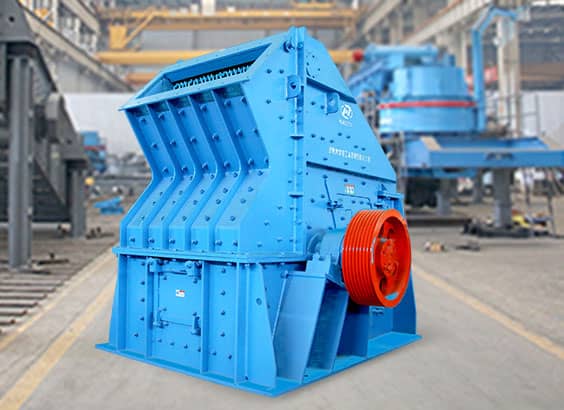

Machine Photo

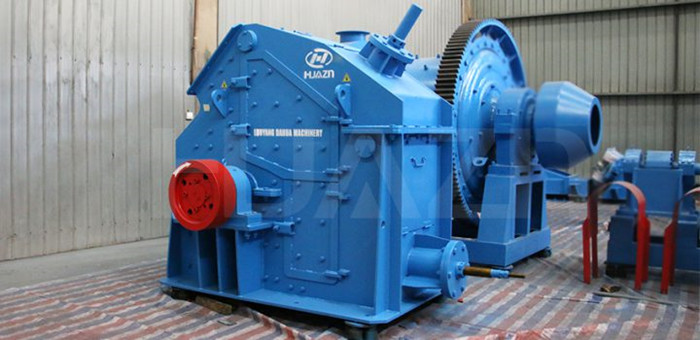

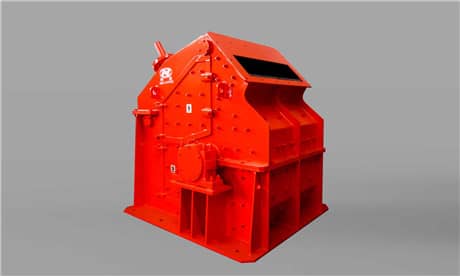

isp impact crusher 1

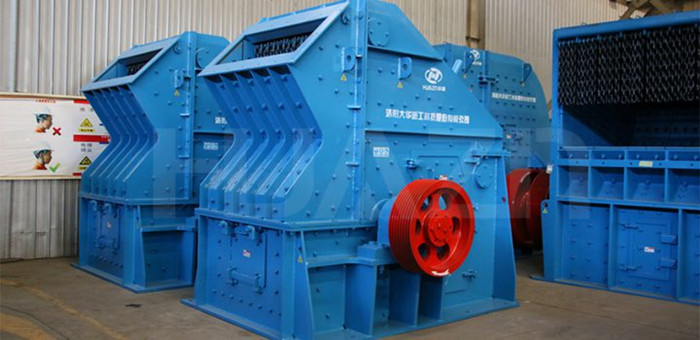

isp impact crusher 2

Customer Cases

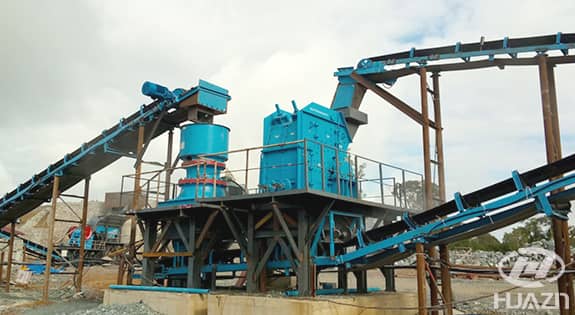

ISP impact crusher application 1

Sand and Stone Production Line of Don Sahong hydropower Station in Laos.

The main equipment: ZSW4911 vibrating feeder, ISP1310 impact crusher, C1008 jaw crusher, GPY200S cone crusher, PLS1000 vertical impact crusher, 3YK2160 vibrating screen.

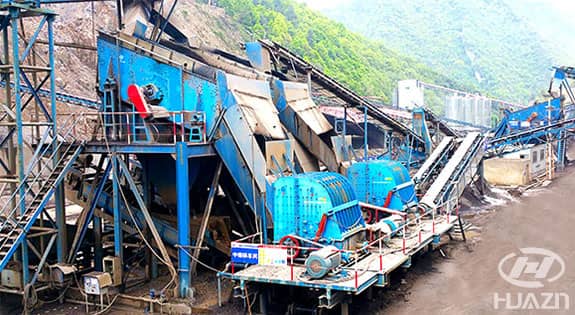

ISP impact crusher application 2

650 t/h Aggregates Production Line for Hydropower Station at Chongqing.

The main equipment: jaw crusher, strong impact crusher, PLS sand making machine, heavy duty vibrating screen, liner screen, and dehydration screen.
