Limestone Crusher
Processing Capacity: 50-1200TPH
Max. Feeding Size:300-700mm
Application Fields: cement, construction, chemistry, highway and railway.
Applied Materials: Limestone, feldspar, calcite, talc, barite, dolomite, kaolin,etc.
Customized Service: Small, medium and large models can be customized to meet your needs.
Description
The best selling limestone crusher includes jaw crusher, cone crusher, impact crusher, mobile crusher etc. We also have other crusher types for choice. Make customized solution for you.
Limestone coarse crusher: jaw crusher
The limestone jaw crusher is usually used as the first rock crusher, and it is suited for medium-size crushing of ore and bulk materials with a compressive strength of not more than 320Mpa. Jaw crusher is divided into coarse crushing and fine crushing. The feeding size is 125mm~750mm. It often forms a complete sandstone production line together with cone crusher, impact crusher and sand making machine.
The impact crusher can granite, limestone, concrete, and the like coarse materials with a side length of less than 500 mm and a compressive strength of less than 350 MPa.
【Impact crusher VS cone crusher】
Impact crusher has a lower price, uniform discharge, less needle-like crushed product.
The cone crusher is slightly more expensive, but the wearing parts have a long life. In the long run, the cone crusher is more durable.
【Impact crusher VS hammer crusher】
The impact crusher has a larger crushing ratio and can more fully utilize the high-speed impact energy of the entire rotor.
The impact crusher is easy to wear, which makes it limited in the application of hard material crushing.

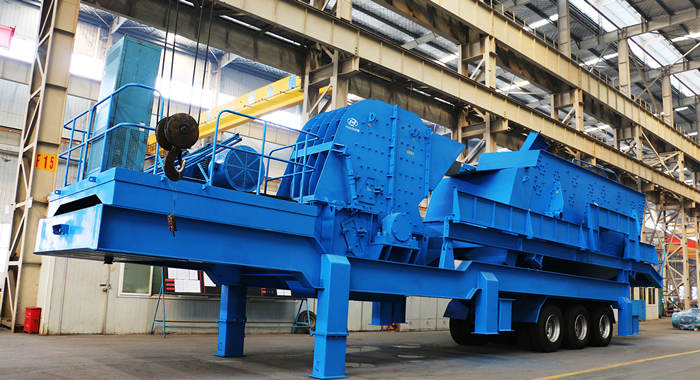

Main Equipment: mobile jaw crusher + mobile impact crusher
Flexible, small space, lower invest, easy to construct; intelligent design, secure and convenient one-button operation.
Features
1.Factory-direct sale, guaranteed quality with competitive price, saving costs.
2.High crushing efficiency, adjustable final size, reliable performance, easy maintenance.
3.High quality spare parts, long lifetime, full service system.
Parameter
| Model | Max. Feed Size(mm) |
Discharge Size (mm) |
Capacity (t/h) |
Power (kw) |
|
| <150MPa | <250MPa | ||||
| PFQ1108 | 300 | 150 | 30 | 50~100 | 75 |
| PFQ1110 | 400 | 200 | 35 | 80~150 | 110 |
| PFQ1310 | 400 | 200 | 40 | 140~200 | 160 |
| PFQ1313 | 400 | 250 | 40 | 180~260 | 200 |
| PFQ1315 | 400 | 300 | 40 | 200~300 | 250 |
| PFQ1320 | 400 | 300 | 40 | 300~400 | 2×160 |
| PFQ1520 | 500 | 400 | 40 | 350~550 | 2×250 |
| PFQ1623 | 700 | 400 | 40 | 600~780 | 2×355 |
| PFQ1823 | 700 | 400 | 40 | 650~1000 | 2×400 |
Remark: The production capacity listed in the table is based on limestone with the loose density 1.6/m³. The feed should be moderate. If the feed is too big, it will reduce the capacity and increase the wear.
Structure

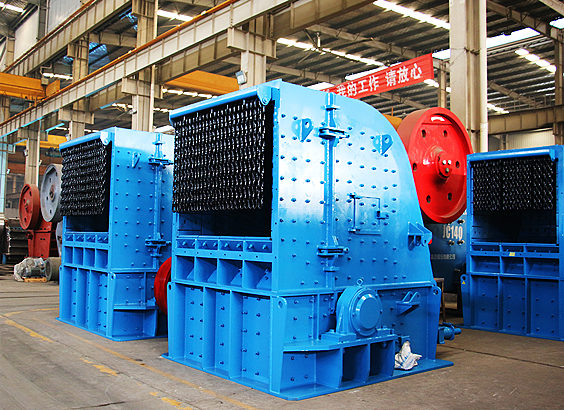

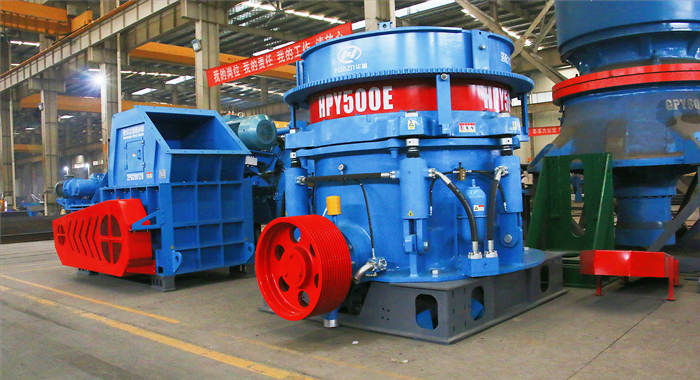

Machine Photo
Customer Cases
Road Reconstruction Project in East Timor
The main equipment: ZSW490×110 feeder, C1008 jaw crusher, PFQ1313B impact crusher, 3YA2460 vibrating screen、DXS3.2A sand washer and complete set of automatic control system.
2000t/h Limestone Production at Mengzi Country, Yunnan Province.
The main equipment: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen
